Targeting the Anthropocene: Advanced Bio-Systems for Global Microplastic Mitigation

Abstract

The global proliferation of microplastics demands sustainable remediation alternatives to energy-intensive conventional disposal methods, shifting research focus toward polymer-degrading microbial communities within the “plastisphere.” The primary objectives of this study are twofold: first, to systematically decode the sequential biophysical mechanisms underlying microplastic colonization and enzymatic degradation; and second, to establish an empirically validated, scalable treatment framework that employs both a novel biological isolate and a hybrid engineering architecture. Experimentally, we investigate the multi-stage colonization process and demonstrate that “Phase Zero” conditioning films modulate the surface zeta potential (ζ) to anchor pioneer r-strategists. To evaluate degradative efficacy under accelerated conditions without abiotic pretreatment, the newly isolated carp gut strain Hafnia paralvei UUNT_MP29 was exposed to pristine low-density polyethylene (LDPE) and polystyrene (PS). Over a 16-day biotic incubation period, structural and chemical alterations were distinctly polymer-specific: bacterial action on the polyolefin LDPE yielded a Carbonyl Index of 0.4594 and a 10.95 °C reduction in thermal stability (T_max), whereas the aromatic PS matrix exhibited a Carbonyl Index of 0.3235 alongside a 10.80 °C decrease in T_max, with both substrates showing intense surface pitting. To standardize these complex tracking metrics across the field, a universal four-pillar Biodegradability Index (BI) was formulated. Based on these findings, we recommend an immediate transition from passive waste containment to a closed-loop engineering approach. Specifically, we propose integrating an artificial intelligence (AI)-managed hybrid bioprocess configuration that couples Advanced Oxidation Processes (AOPs) with Membrane Bioreactors (MBRs). This dual-stage configuration is recommended to overcome polyolefin crystallinity, accelerate stoichiometric mineralization, and actively mitigate additive-mediated toxicity at the industrial scale, providing a vital blueprint for the circular bio-economy.

1. Introduction

The global spread of synthetic polymers has shifted from a symbol of industrial progress to a hallmark of the Anthropocene’s most widespread environmental disasters. While large-scale plastic debris presents a highly visible ecological crisis, a far more insidious threat lies in the ubiquity of microplastics (MPs)—polymer particles smaller than 5 mm. These anthropogenic particles have become geologically pervasive, infiltrating remote ecosystems from the hadal zones of the Mariana Trench to the alpine cryosphere of Mount Everest. More recently, empirical studies have confirmed that MPs bioaccumulate within human systems, crossing biological barriers to lodge in blood vessels and placental tissues [1,2,3,4]. Conventional remediation methods, primarily centered on mechanical filtration and chemical oxidation, face growing criticism for their high energy demands and the unavoidable generation of toxic secondary byproducts. Consequently, environmental research has shifted toward bioremediation—a sustainable approach that leverages microbial metabolic diversity to achieve complete stoichiometric mineralization of polymers into carbon dioxide (CO₂), water (H₂O), and cellular biomass.

This biological breakdown of microplastics reflects a remarkably rapid example of anthropogenically driven biological evolution. In less than a century, specialized microbial communities known as the Plastisphere have emerged [5,6,7,8], effectively utilizing synthetic polymers as primary carbon and energy sources. Successful colonization typically begins with an abiotic “priming” phase and the rapid formation of a “Phase Zero” conditioning film. This film dynamically alters surface energetics and boundary-layer hydrophobicity, thereby permitting stable microbial attachment. Beyond initial adhesion, researchers are elucidating the distinct metabolic pathways required to destabilize diverse polymer matrices. For highly stable, recalcitrant carbon–carbon backbones, current research focuses on the catalytic efficiency of specific oxygenases—such as alkane monooxygenase (AlkB) and cytochrome P450 systems—which introduce hydroxyl groups into hydrophobic aliphatic chains. Conversely, extracellular hydrolases such as cutinases and laccases are leveraged to target and cleave ester linkages and accessible aromatic networks in hetero-chain plastics.

By comprehensively mapping these successional and enzymatic pathways, the field moves closer to developing scalable, high-throughput biotechnological systems to mitigate global plastic pollution. To systematically address these challenges, this manuscript establishes a unified, multi-scale framework for microplastic mitigation that bridges fundamental microbial ecology and scalable bioprocess engineering.

Specifically, this work first elucidates the microscale successional mechanics and surface energetics that govern early-stage Plastisphere biofilm formation. Second, drawing upon recently established empirical baselines—specifically, the documented polyolefin-degrading efficacy, spectroscopic footprints, and thermogravimetric profiles of the aquatic isolate Hafnia paralvei UUNT_MP29 [9]—as a critical proof of concept, we evaluate the thermodynamic and kinetic barriers that limit raw microbial matrix erosion. Finally, to translate these microscale baseline footprints into scalable industrial applications, we conceptualize a novel, modular, AI-managed hybrid treatment architecture that strategically couples Advanced Oxidation Processes (AOPs) with downstream Membrane Bioreactors (MBRs), underpinned by a newly developed, multi-parametric Biodegradability Index (BI) designed to standardize global polymer mineralization metrics. Ultimately, this comprehensive perspective offers a predictive, verifiable blueprint for transitioning from passive waste containment to active, circular biotechnological remediation.

2. Plastisphere and Microbial Ecology

2.1. The Genesis of the Plastisphere: Successional Dynamics and Colonization Mechanics

The introduction of synthetic polymers into aquatic ecosystems has led to the emergence of a structurally and functionally distinct ecological niche: the plastisphere. Far from being inert substrates, microplastics (MPs) serve as dynamic anthropogenic microhabitats that fundamentally alter marine carbon cycling and net community production. The transformation of a pristine polymer surface into a complex, multi-generational biological matrix is not a stochastic event, but rather a highly ordered, multi-stage successional sequence governed by interfacial thermodynamics and microbial ecology [10].

In traditional marine ecology, microbial communities colonizing organic debris (such as marine snow or wood falls) must complete their life cycles before their ephemeral “island” substrate dissolves. In contrast, the plastisphere substrate remains intact for decades. This persistence enables the development of complex, multi-generational biofilms that reach far greater maturity and structural stability than those on natural, biodegradable surfaces [11].

2.1.1. Biophysical Dynamics and Biogeochemical Implications

Because synthetic polymers are inherently hydrophobic, they repel water molecules while naturally adsorbing ambient organic macromolecules and pioneer microbial cells. This thermodynamic preference creates a concentrated, nutrient-rich boundary layer on the plastic surface that far exceeds the nutritional density of the surrounding bulk water.

The extreme durability of microplastics also converts them into long-distance vectors for microbial communities that would otherwise remain geographically confined. These synthetic islands allow coastal pathogens or invasive species to survive prolonged journeys across oligotrophic open oceans—an ecological feat previously restricted by substrate degradation. Consequently, this continuous transport promotes the homogenization of aquatic microbiomes, wherein distinct regional ecosystems gradually lose their unique microbial signatures.

Furthermore, the exceptionally high cell density within these biofilms enhances gene flow and horizontal gene transfer (HGT), establishing the plastisphere as an evolutionary hotspot for genetic exchange. Recent investigations demonstrate that the plastisphere significantly accelerates the dissemination of antibiotic resistance genes (ARGs); the close physical proximity of diverse taxa within a highly stable surface matrix facilitates rapid plasmid-mediated conjugation between bacteria [12,13].

Beyond its role as a biological vector, the plastisphere actively modulates marine carbon cycling and net community production. As microbial colonization progresses, the accumulation of metabolic byproducts and the physical weight of the maturing biofilm alter the host particle’s buoyancy. This induces a distinct vertical “cycling” behavior: particles sink as biofilm mass increases and potentially rise back toward the photic zone if the biofilm is stripped by grazing or undergoes senescence.

While pristine marine snow predictably fuels the biological pump by transferring carbon to the deep ocean floor, plastisphere particles exhibit anomalous sinking velocities and altered “shelf lives”. These divergent transport dynamics are currently being integrated into global climate models to refine estimates of oceanic carbon sequestration capacity [14]. Figure 1 illustrates the development of a plastisphere from a pristine particle to a complex ecosystem.

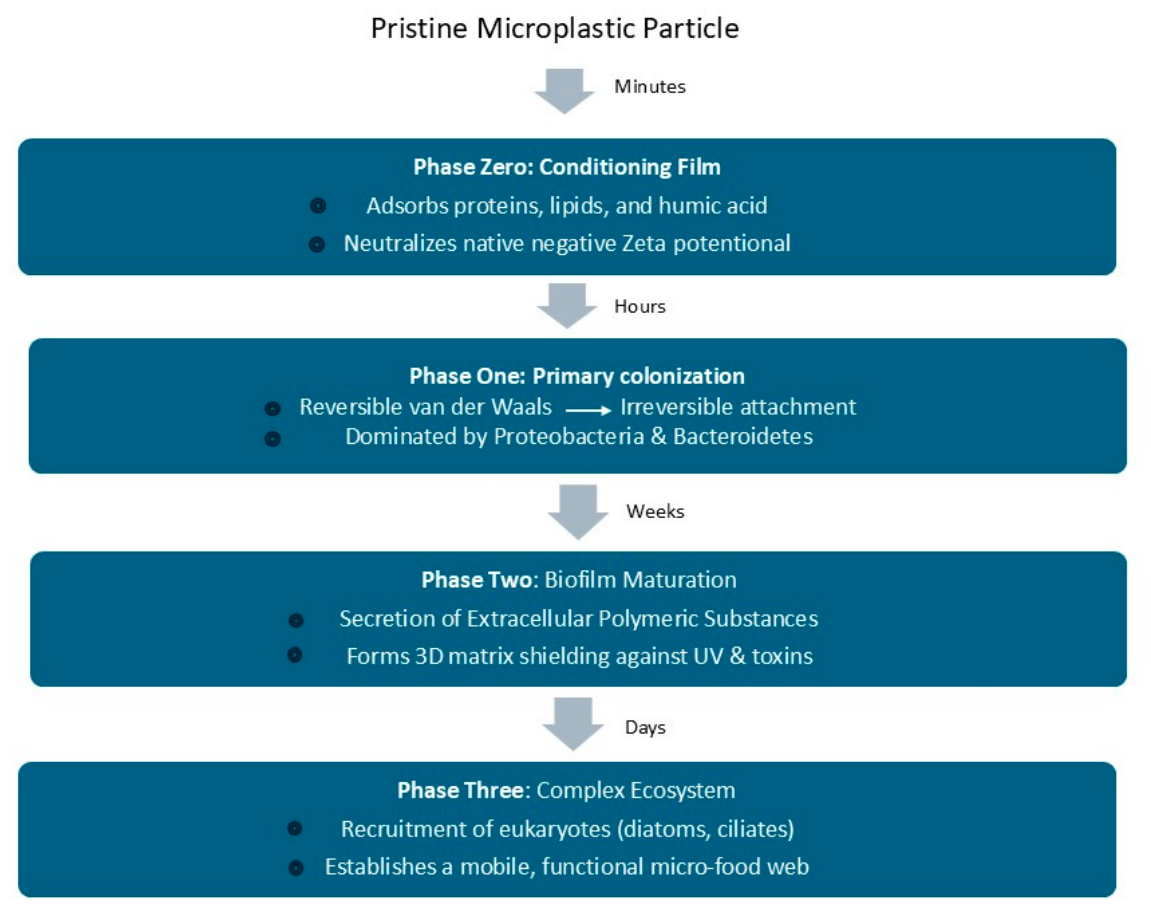

Figure 1. A comprehensive mechanistic flowchart illustrating the multi-tiered, chronological succession of the plastisphere on hydrophobic polymer surfaces. Evolution progresses from the abiotic Phase Zero (macromolecular conditioning film adjusting the surface zeta potential) through pioneer Phase One attachment of r-strategists, Phase Two metabolic specialization (recruitment of K-strategists and synergistic enzyme deployment), and culminates in a highly structured, mature Phase Three multi-trophic micro-food web.

The localized microbial architecture on a microplastic fragment rarely mirrors the composition of the surrounding water column. As the biofilm matures, it recruits higher-order microorganisms, including ciliates and amoebae, establishing a localized, concentrated microbial food web that travels continuously with the plastic substrate.

2.1.2. Phase Zero: The Conditioning Film

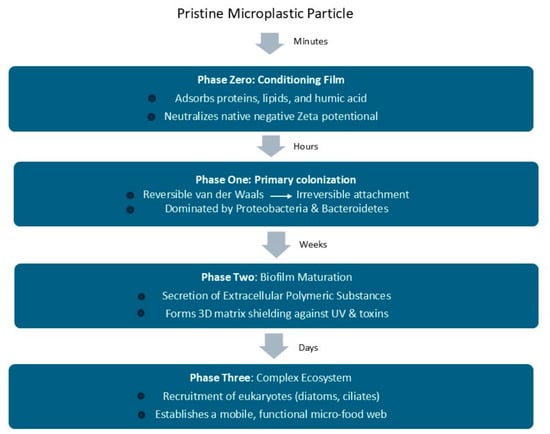

The initialization of the plastisphere relies on the formation of a conditioning film—a critical process that transforms a sterile, industrial byproduct into a biologically receptive landing pad. Driven by the thermodynamic imperative to minimize interfacial free energy, the transition from a pristine synthetic surface to a conditioned substrate occurs almost instantaneously upon aqueous submersion [15,16].

When polymers such as polyethylene (PE), polypropylene (PP), or polyethylene terephthalate (PET) enter the water, they rapidly adsorb molecules. Within minutes, ambient organic macromolecules—including proteins, lipids, polysaccharides, and humic acids—adhere to the hydrophobic surface, forming a molecular scaffold. This primary layer serves as a biological primer, masking the underlying polymer properties and providing critical anchor points for pioneer microbes. This conditioning process alters the particle’s physicochemical profile through three main mechanisms:

• Zeta Potential Overwrite: Pristine plastics possess a distinct surface charge that the conditioning film systematically overwrites. In marine environments, the rapid adsorption of organic acids and multivalent cations (e.g., Ca²⁺ and Mg²⁺) shifts the surface charge toward neutrality or a slight negative state.
• Electrostatic Buffer: Because most aquatic bacteria carry a net negative surface charge, electrostatic repulsion would naturally deter them from approaching a pristine plastic surface. The conditioning film serves as a charge buffer, neutralizing these repulsive forces and enabling pioneer microbes to establish direct physical contact.
• Boundary Layer Formation: While the plastic’s core remains strictly hydrophobic, the newly formed film exposes hydrophilic functional groups on the surface, such as hydroxyl (-OH) and carboxyl (-COOH) groups. This structural shift creates a stagnant “boundary layer” of water, providing a stable, localized environment in which extracellular enzymes can function effectively without being rapidly diluted or sheared away by turbulent ambient currents.

By specifically targeting this foundational conditioning film, biotechnologists are designing novel mitigation strategies against plastic pollution. One avenue focuses on engineering ultra-hydrophobic or anti-fouling polymer surfaces that prevent film formation entirely, rendering the plastic “invisible” to microbial colonization and halting pathogen propagation.

Conversely, bio-receptive engineering seeks to modify plastics so that their resulting conditioning films selectively recruit specific plastic-degrading microbial strains—such as Ideonella sakaiensis—thereby accelerating polymer degradation within managed or controlled waste environments [15].

2.1.3. Selective Enrichment and the Dual-Purpose “Trojan Horse” Effect

Microplastics act as highly selective taxonomic filters, maintaining microbial assemblages that diverge sharply from those in the surrounding water column or adjacent sediments. This selective enrichment is dictated by specific polymer surface chemistries, weathering states, and the distinct microenvironments within the biofilm matrix. Crucially, these buoyant, recalcitrant synthetic islands function as a “dual-purpose ‘Trojan Horse’”, simultaneously transporting biological and chemical threats across global marine biomes [17].

Biological Vectors

The stable, high-density environment of the Extracellular Polymeric Substance (EPS) matrix supports the survival, proliferation, and long-range transport of opportunistic pathogens (e.g., pathogenic Vibrio spp.) and non-indigenous invasive species. Furthermore, the physical compression of diverse taxa within the EPS matrix creates ideal conditions for horizontal gene transfer via plasmid conjugation, drastically accelerating the spread of antibiotic resistance genes (ARGs) into pristine ecosystems.

Chemical Vectors

Concurrently, microplastics act as highly efficient sorbents for hydrophobic chemical contaminants. They concentrate persistent organic pollutants (POPs), such as polychlorinated biphenyls (PCBs) and polycyclic aromatic hydrocarbons (PAHs), from the surrounding water column.

This exogenous accumulation is compounded by the internal leaching of toxic additives—including plasticizers such as bisphenol A (BPA) and phthalates—added to the polymer matrix during industrial manufacturing.

By consolidating these twin vectors, the plastisphere enables the synchronized delivery of endocrine-disrupting chemicals and pathogenic microbes into sensitive marine habitats and commercial seafood chains, posing a multi-layered challenge to global ecotoxicology and environmental health.

2.1.4. Synergistic Degradation Within the Biofilm

The close spatial proximity of diverse taxa within the mature biofilm matrix favors the establishment of tight syntrophic relationships. Within these metabolic consortia, primary degraders break down complex, high-molecular-weight polymers into smaller, bioavailable oligomers and monomers, which are subsequently mineralized by adjacent secondary consumers.

This structural arrangement significantly enhances polymer degradation rates compared to free-floating planktonic bacteria. The surrounding EPS matrix acts as a physical barrier that prevents the spatial dilution of the “molecular scissors”—the extracellular depolymerases and esterases required to cleave the recalcitrant polymer backbones [18].

During initial colonization, pioneer species (often from the phyla Proteobacteria and Bacteroidetes) use weak van der Waals forces and long-range electrostatic interactions to form reversible contact with the conditioned surface. After successful attachment, these pioneers transition to irreversible colonization by secreting an intricate EPS matrix. This biological glue anchors the community, concentrates extracellular enzymes at the polymer interface, and shields constituent cells from environmental stressors such as solar UV radiation, chemical toxins, and protozoan predation.

Metagenomic data indicate that although Proteobacteria and Bacteroidetes consistently dominate the core plastisphere microbiome, the enrichment of highly specialized functional groups is strictly dictated by the underlying polymer chemistry. For example, the selective enrichment of Actinobacteria on polystyrene (PS) or of Alcanivorax on PE is directly driven by the metabolic capacity of these taxa to express the oxygenases and hydrolases required to cleave the respective polymer backbones [19,20].

In addition to bacterial lineages, fungal genera such as Aspergillus and Penicillium are often enriched in terrestrial and coastal microplastic samples [21]. The distinctive filamentous hyphae of these fungi allow them to exert direct mechanical pressure on the substrate, penetrating deeply into the polymer matrix. This mechanical disruption increases the available surface area and, together with bacterial surface erosion, accelerates polymer degradation.

Table 1 provides a systematic overview of the primary microbial taxa isolated from the plastisphere of common synthetic polymers, detailing their substrate affinities and the conditioning film’s associated properties.

Table 1. Taxonomic diversity and microbial preferences for common polymer substrates [22,23,24,25,26,27,28,29,30,31,32,33].

Polymer Type	Dominant Microbial Taxa (Genera)	Surface Characteristics & Affinity	Conditioning Film & Priming Characteristics
Polyethylene (PE)	Pseudomonas, Rhodococcus, Bacillus, Alcanivorax [22,23,24]	High hydrophobicity; requires significant pre-oxidation for attachment.	Adsorption of long-chain fatty acids and non-polar lipids to reduce high interfacial energy.
Polyethylene Terephthalate (PET)	Ideonella, Comamonas, Pseudomonas, Saccharomonospora [25,26,27,28,29]	Semi-crystalline; contains ester bonds susceptible to hydrolysis.	High affinity for proteins and humic acids; overwrites Zeta potential to neutralize the surface for Ideonella attachment.
Polypropylene (PP)	Stenotrophomonas, Bacillus, Pseudomonas [30,31]	Highly resistant; complex tertiary carbon structure.	Adsorption of multivalent ions (Ca2+, Mg2+) overwrites the zeta potential, neutralizing repulsive charges on the smooth surface.
Polystyrene (PS)	Exiguobacterium, Rhodococcus, Pseudomonas, Flavobacterium [32,33]	Aromatic rings require ring-cleavage oxygenases.	Conditioning film introduces hydrophilic groups (-OH, -COOH) to stabilize the boundary layer for ring-cleavage enzymes.

2.2. The Colonization Phase: From Abiotic Weathering to Biotic Succession

The transformation of a microplastic (MP) fragment from a sterile industrial byproduct into a biologically active plastisphere is not instantaneous. It is driven by a continuous interplay between environmental degradation and microbial colonization, marking a transition from abiotic weathering to biotic attachment that fundamentally reshapes the polymer’s physicochemical properties [34,35,36,37].

Microbial colonization of synthetic polymers typically requires a preceding “priming” phase. Standard synthetic plastics—particularly polyolefins such as PE and PP—have highly hydrophobic, smooth surfaces that structurally inhibit initial microbial attachment. During this priming stage, solar ultraviolet-B (UV-B) radiation initiates photolytic cleavage, generating free radicals that drive chain scission and the subsequent formation of oxygen-containing functional groups, including carbonyl (>C=O), carboxyl (-COOH), and hydroxyl (-OH) moieties [35,38,39].

Simultaneously, mechanical stresses and thermal fluctuations—driven by hydrodynamic wave action in aquatic settings or by temperature cycling in terrestrial edaphic matrices—induce microfractures that exponentially increase the material’s surface-area-to-volume ratio. Collectively, these abiotic transformations reduce surface hydrophobicity and enhance surface wettability, thereby increasing the polymer’s binding affinity for microbial extracellular proteins and polysaccharides [39,40]. Figure 2 illustrates abiotic degradation of PE following photolytic cleavage of the polymer backbone.

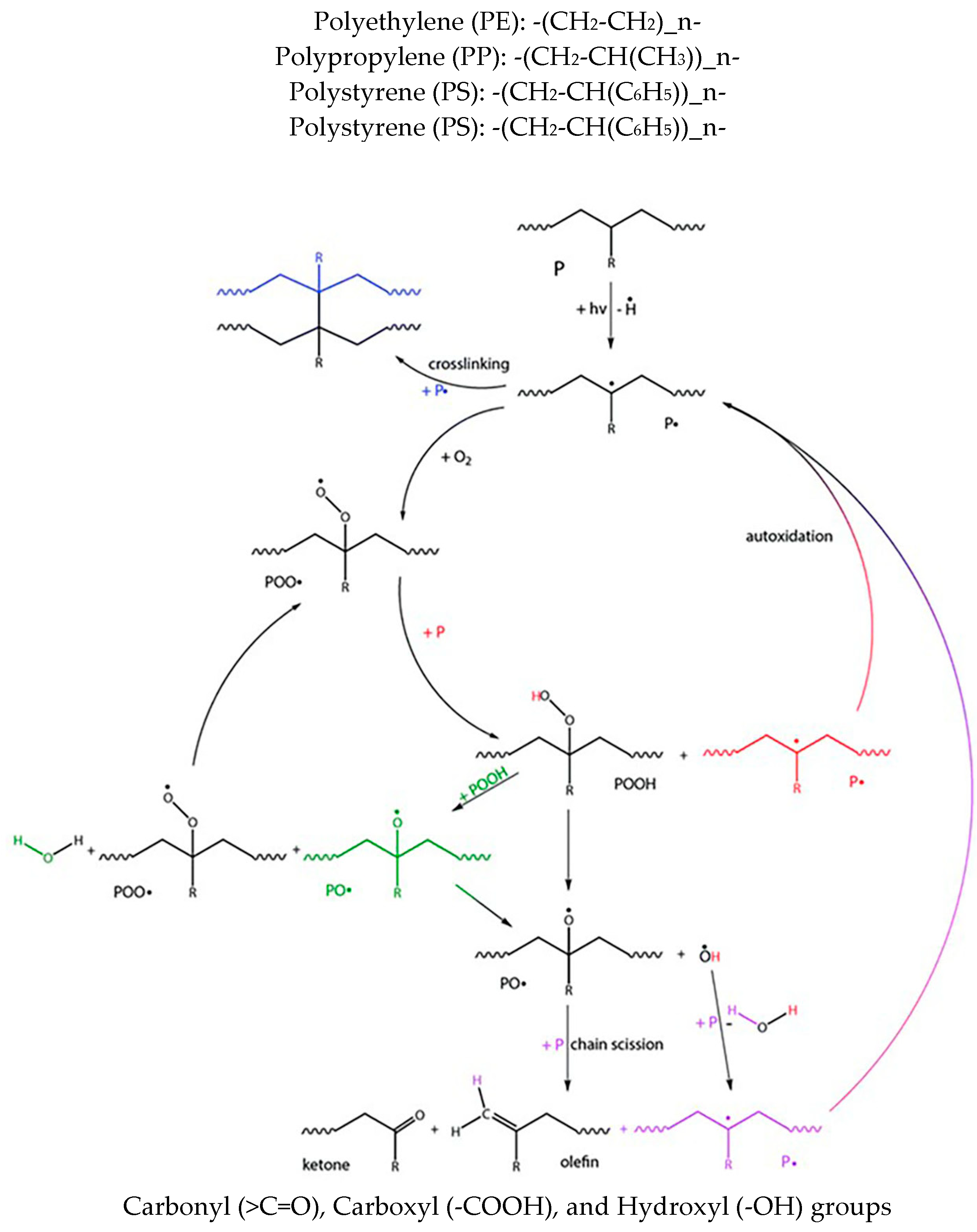

Figure 2. Abiotic photo-oxidative degradation pathways of polyethylene (R = H), polypropylene (R = CH₃), and polystyrene (R = C₆H₅, aromatic ring) backbones. Solar UV–B radiation initiates free-radical propagation and subsequent Norrish chain scission, yielding functionalized, low-molecular-weight oxygenated intermediates suitable for subsequent biotic assimilation (adapted from [39]).

The “Island” Effect: From Transient Aggregates to Stable Synthetic Substrates

A profound shift in marine microbial ecology is underway as persistent synthetic polymers replace ephemeral natural organic matter in aquatic ecosystems [41,42,43]. Traditionally, open-ocean microbial life has relied heavily on “marine snow”—transient organic aggregates composed of cellular detritus, phytoplankton, and zooplankton fecal pellets. These natural particles serve as ephemeral islands; they are rapidly mineralized by their colonizers, forcing resident microbes to complete their life cycles or disperse before the substrate dissolves and sinks into the deep benthos. In contrast, microplastics serve as durable, non-biodegradable synthetic islands. Because polymers like polyethylene (PE) and polypropylene (PP) resist rapid biological mineralization, they provide a persistent, long-term platform that fundamentally rewires classic ecological succession.

The multi-decadal environmental shelf life of a microplastic particle permits the development of highly complex, multi-generational biofilms that are structurally impossible on short-lived natural aggregates. This prolonged structural stability enables the colonizing community to reach an advanced stage of ecological climax, marked by specialized metabolic niches, tight syntrophic relationships within the extracellular polymeric substance (EPS) matrix, and the recruitment of higher-order eukaryotic predators such as ciliates and amoebae. Furthermore, these durable synthetic islands serve as long-range vectors for biological rafting across global boundaries. While natural organic aggregates typically dissipate within days, microplastic particles can traverse entire ocean basins intact. This extraordinary persistence allows pathogenic bacteria, antibiotic resistance genes (ARGs), and invasive coastal species to survive long-distance transport across oligotrophic waters, ultimately driving a homogenization of aquatic microbiomes as unique regional microbial signatures are progressively overwritten by traveling plastisphere communities.

This artificial stability also radically disrupts the vertical cycling of nutrients and pollutants in the water column. While marine snow follows a predictable downward trajectory that fuels the marine biological carbon pump, the buoyancy dynamics of these synthetic islands are highly fluid and nonlinear. As the plastisphere biofilm matures, the accumulation of cellular biomass, trapped minerals, and metabolic byproducts increases the particle’s overall density, eventually overcoming its inherent buoyancy and triggering a downward flux toward the benthos. However, if this biofilm is stripped away by zooplankton grazing, or if it undergoes natural senescence, nutrient starvation, and subsequent sloughing, the low-density plastic particle frequently regains buoyancy and ascends back into the upper photic zone. This bidirectional, nonlinear vertical cycling continuously redistributes carbon, micro-niches, and adsorbed persistent organic pollutants (POPs) across the water column, creating complex ecological feedback loops that contemporary climate, transport, and biogeochemical models are only beginning to resolve.

The lifecycle of a microplastic particle is thus a multi-stage continuum that begins with physical disintegration and concludes with biological assimilation. While the primary conditioning film and pioneer attachment function as the biological gateway, the overarching degradation pathway is defined by a distinct shift from environmental weathering to active metabolic consumption. This transition reflects a fundamental transformation in the polymer’s surface chemistry: a shift from nonspecific, radical-driven chain scission to targeted, enzyme-mediated covalent cleavage. To clarify the precise relationship between these two critical operational stages, Table 2 outlines the governing drivers, kinetics, and structural outcomes that define the transition from abiotic preparation to biotic colonization.

Table 2. Comparative Dynamics of Abiotic Weathering and Biotic Colonization.

Feature	Abiotic Weathering	Biotic Colonization
Primary Drivers	Solar UV radiation, thermal fluctuations, and mechanical hydrodynamic abrasion.	Microbial extracellular enzymes, EPS production, and syntrophic metabolic consortia.
Effect on Polymer	Random polymer chain scission, microfracturing, and surface oxidation.	Localized bio-erosion, surface pitting, and targeted carbon mineralization.
Timescale	Seconds to months (continuous, ambient-dependent).	Hours to years (ordered, successional stages).
Physical/Chemical Result	Increased effective surface area and elevated surface hydrophilicity.	Net mass loss, structural thinning, and targeted carbon–carbon bond cleavage.

2.3. Key Taxa: The “Heavy Hitters” of Microplastic Degradation

While a diverse assembly of opportunistic microorganisms can colonize microplastic surfaces, only a specialized cohort of “heavy hitters” possesses the enzymatic machinery required to actively use these synthetic polymers as primary carbon and energy sources. These highly adapted taxa have evolved or acquired metabolic pathways capable of cleaving the highly stable covalent bonds that characterize modern synthetic backbones.

2.3.1. Bacterial Powerhouses

Bacteria represent the most extensively studied agents in plastic bioremediation due to their rapid replication rates, ease of genetic manipulation, and high metabolic flexibility.

Ideonella sakaiensis (PET Specialist): Discovered as a highly specialized organism [25], this bacterium produces two highly specific, complementary enzymes: PET hydrolase (PETase) and mono-(2-hydroxyethyl) terephthalate hydrolase (MHETase). Operating in tandem, these biocatalysts fully depolymerize polyethylene terephthalate (PET) into its benign constituent monomers, terephthalic acid and ethylene glycol.

Pseudomonas Species (Versatile Degraders): Strains such as Pseudomonas putida [44] and Pseudomonas aeruginosa [45] function as highly versatile metabolic catalysts in industrial and environmental bioremediation. They are highly effective at initiating the degradation of recalcitrant polyolefins such as PE and PP, using secreted alkane monooxygenases to introduce oxygen atoms into long hydrocarbon chains, thereby making them susceptible to downstream β-oxidation [46].

Bacillus Species: Bacillus cereus and Bacillus subtilis are frequently isolated from plastic-enriched marine and riverine benthic sediments. These strains are characterized by their ability to form robust, dense biofilms and to secrete extracellular laccases and oxidases that facilitate the degradation of polystyrene (PS) and polyvinyl chloride (PVC) [29].

Rhodococcus Species: Belonging to the high-GC Actinobacteria, these organisms are exceptionally well-adapted to metabolizing highly hydrophobic compounds. They are notable for their high survival and persistence rates on low-density polyethylene (LDPE), where they alter the polymer’s surface characteristics through the targeted secretion of specialized amphiphilic biosurfactants [47].

The functional transition from superficial attachment to active metabolic utilization is mediated by highly specialized, hydrocarbon-degrading marine taxa. Among these, obligate hydrocarbonoclastic bacteria such as Alcanivorax borkumensis play a critical role by utilizing specialized alkane hydroxylase systems to initiate the oxidation of recalcitrant, low-density polyolefin backbones. Concurrently, versatile marine genera like Microbulbifer spp. deploy a suite of extracellular hydrolases that break down localized matrix components and intermediate oligomeric fragments. This cooperative enzymatic deployment drives the macro-structural surface deformation and deep pitting, as visualized in Figure 3.

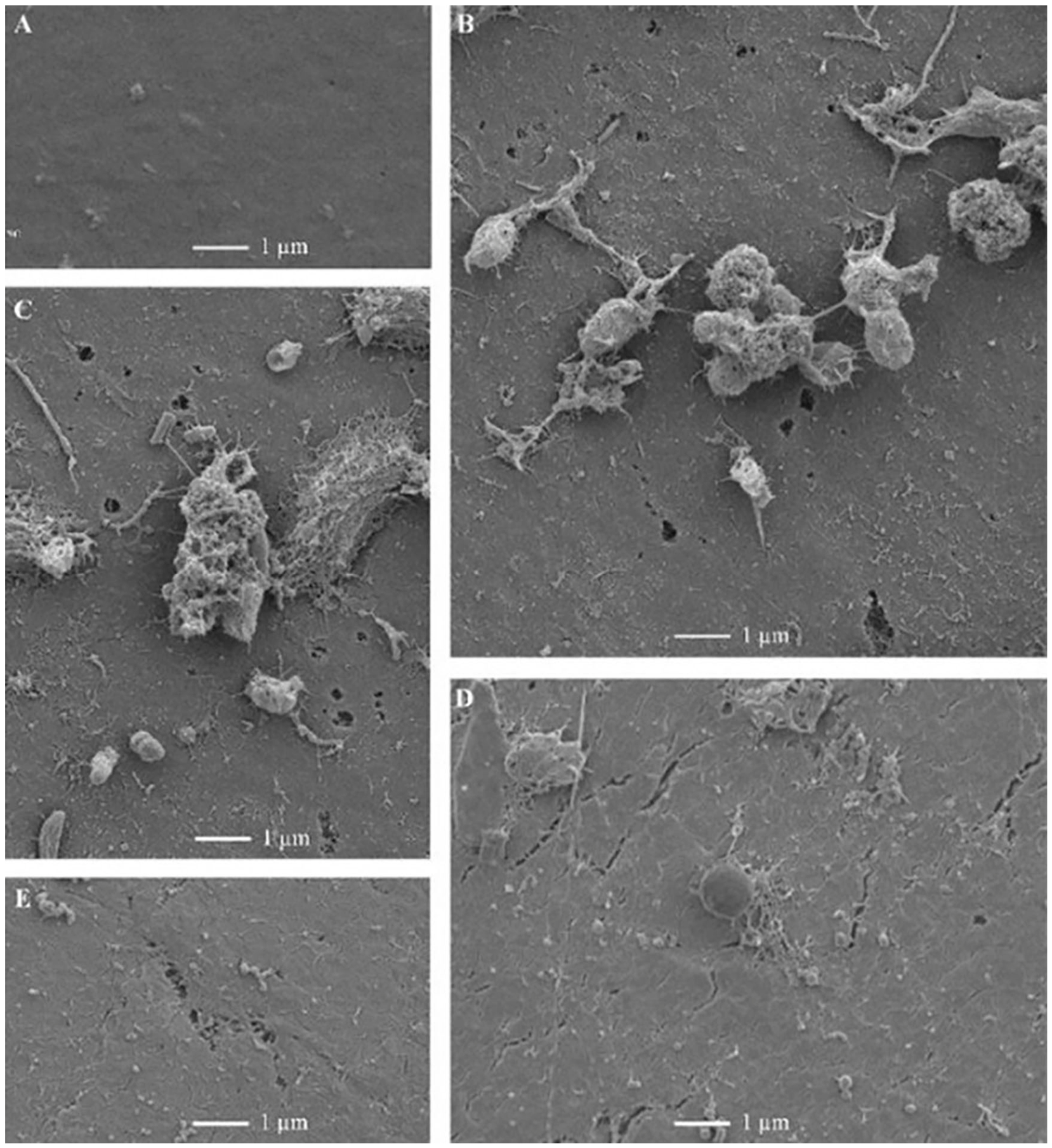

Figure 3. Scanning electron microscopy (SEM) images of a low-density polyethylene (LDPE) surface after two months of enrichment with Alcanivorax borkumensis and Microbulbifer. (A) Abiotic negative control showing a smooth surface (B–E) mature microbial biofilms on LDPE showing extensive cellular attachment, EPS matrix deposition, and structural surface erosion [48].

2.3.2. Fungal Decomposers: The Mechanical Specialists

Filamentous fungi offer a distinct biophysical advantage over single-celled bacteria: their tip-growing hyphae can physically penetrate microfractures within the plastic matrix, exerting high localized mechanical turgor pressure while simultaneously secreting concentrated cocktails of oxidative and hydrolytic enzymes.

Aspergillus and Penicillium: These widespread saprophytic genera serve as primary fungal drivers of synthetic polymer decay (Figure 4) [49]. Species such as Aspergillus niger and Aspergillus fumigatus have demonstrated significant efficacy in reducing the structural mass of polyurethane (PUR) and LDPE via the targeted secretion of extracellular esterases, cutinases, and proteases [50].

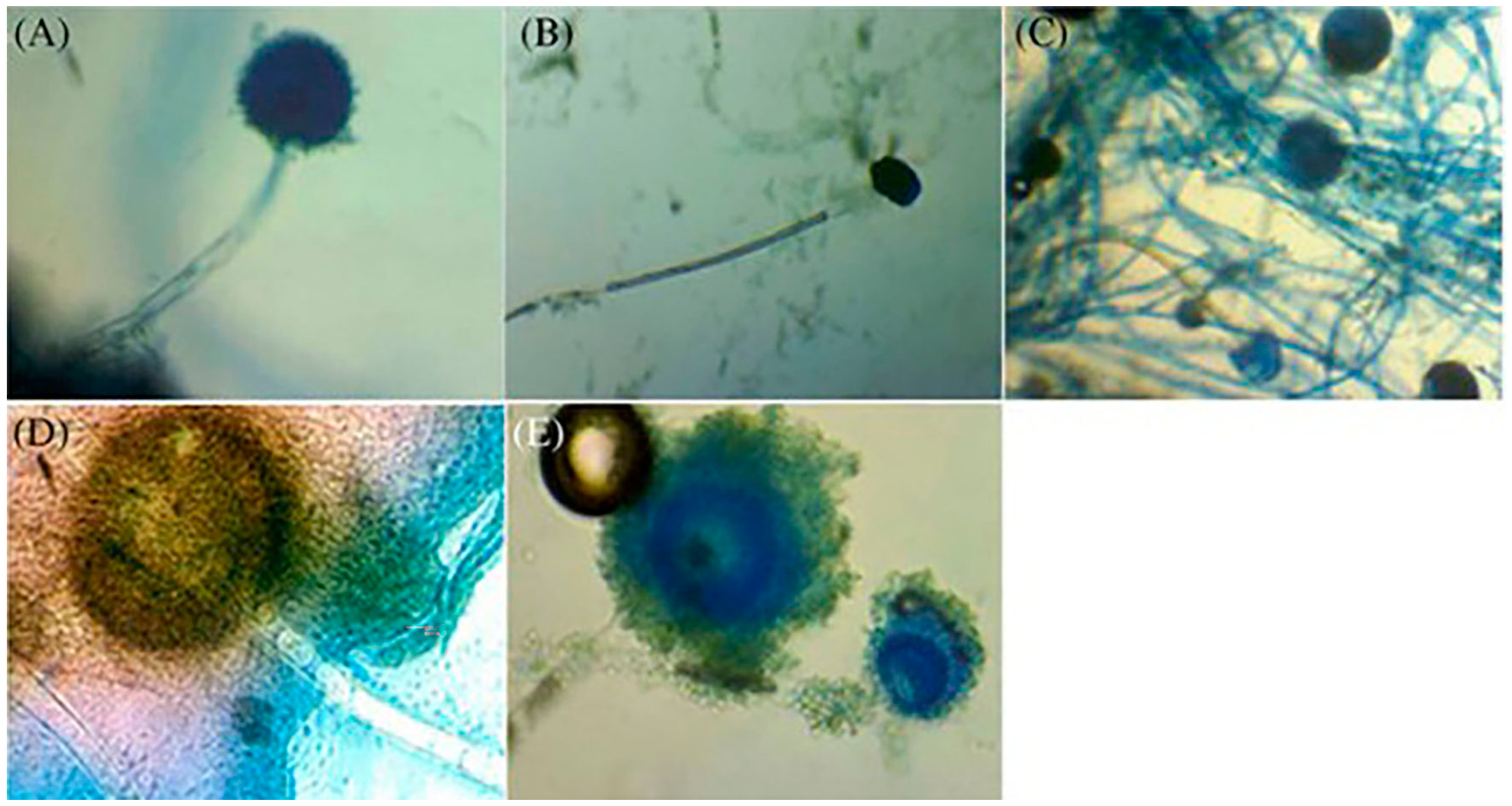

Figure 4. Microscopic images of fungal isolates recovered directly from a municipal plastic waste repository. Morphological characterization identifies these strains at the genus level: (A) Rhizopus sp. (S1) and (B–E) distinct environmental variants of Aspergillus sp. (S2–S5), which showcase robust reproductive structures and sprawling hyphal networks, Reprinted with permission from Ref. [49], 2022.

Zalerion maritimum: This marine-derived fungus has garnered considerable attention for its capacity to degrade PE within saline environments. It effectively reduces the net mass of microplastic pellets by deploying a robust suite of non-specific, extracellular oxidative enzymes, such as laccases, under marine conditions [50,51].

2.3.3. The Intestinal Frontier: Gut Microbiota

An important frontier in plastisphere research is the discovery of symbiotic polymer degradation within the specialized gut microbiomes of certain insect larvae, such as mealworms and waxworms [52]. For example, mealworms (Tenebrio molitor) can ingest, mechanically masticate, and mineralize polystyrene [53,54].

Crucially, this metabolic breakdown is not achieved by the host insect alone but is driven by specialized, obligate gut symbionts—such as Exiguobacterium sp. strain YT2—that possess the specific enzymatic machinery required to cleave and open the highly stable aromatic rings characteristic of the PS backbone [55]. Proposed metabolic pathways and enzymatic mechanisms for polystyrene biodegradation are shown in Figure 5.

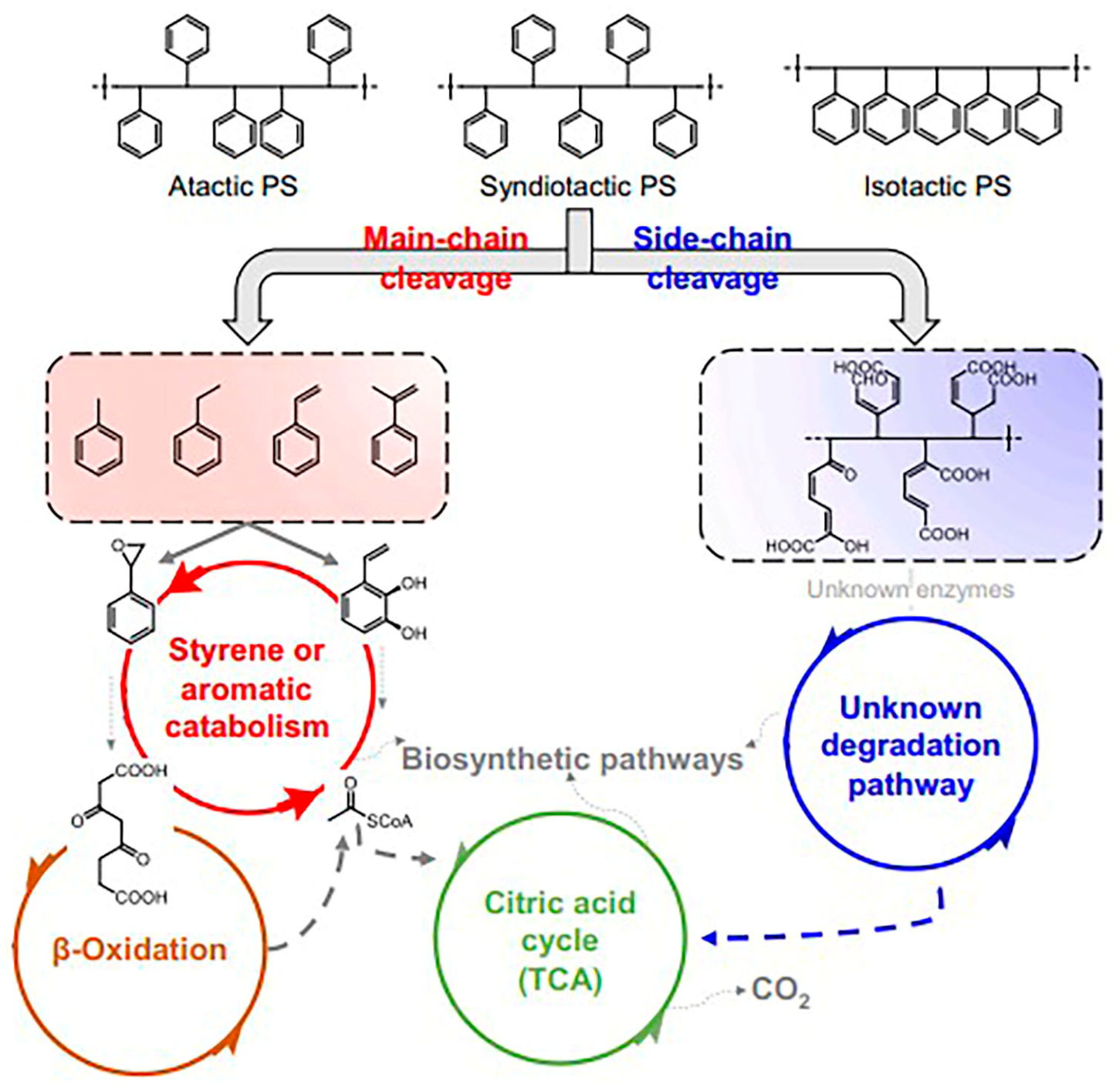

Figure 5. Enzymatic cascade governing the metabolic degradation of polystyrene fragments and their monomeric intermediates. The schematic illustrates the coordinated action of upstream styrene dioxygenases, monooxygenases, and epoxide isomerases that convert the aromatic polymer into phenylacetaldehyde, which is then converted into central metabolic intermediates via the phenylacetic acid pathway [55].

The identification of these specialized organisms reveals that biological plastic degradation is not a uniform metabolic process but a highly diverse set of niche-specific evolutionary strategies. These strategies range from precise bacterial enzymatic hydrolysis to the robust mechanical penetration by fungal hyphae. While the plastisphere provides the physical habitat, these specialized taxa perform the metabolic work required to transition from surface attachment to complete carbon mineralization.

To synthesize these diverse biological approaches, Table 3 categorizes key representatives across all three domains by their target polymers and primary degradation mechanisms.

Table 3. Summary of Targeted Microbial Degradation Pathways.

Microbe	Taxonomic Type	Primary Polymer Target	Governing Biomechanical/Biochemical Mechanism
Ideonella sakaiensis	Bacterium	Polyethylene Terephthalate (PET)	Dual-enzyme extracellular hydrolysis via highly specific PETase and MHETase expression.
Pseudomonas putida	Bacterium	Polyethylene (PE), Polypropylene (PP)	Alkane monooxygenase-mediated terminal oxidation of saturated hydrocarbon backbones.
Aspergillus niger	Fungus	Low-Density Polyethylene (LDPE), Polyurethane (PUR)	Synergistic physical hyphal penetration is paired with the secretion of non-specific esterases and proteases.
Exiguobacterium sp.	Gut Symbiont (Bacterium)	Polystyrene (PS)	Upstream monooxygenases and ring-cleaving dioxygenases targeting the aromatic styrene subunits.

Consequently, the multi-trophic successional maturity of the plastisphere marks the complete transformation of an inert synthetic substrate into a highly dynamic biological hotspot. However, this dense architectural colonization is merely the spatial prelude to true biodegradation. Physical attachment and taxonomic succession are evolutionary pathways that overcome a fundamental energetic bottleneck: accessing the locked carbon within the highly recalcitrant polymer backbone.

The extreme spatial confinement within the mature biofilm alters microbial signaling and gene expression, triggering a metabolic shift from simple surface adherence to active chemical excavation. To dismantle the high-molecular-weight hydrophobic matrices that shield these synthetic polymers, the sessile community must weaponize its secretome. The biofilm’s structural dynamics thus serve a singular biochemical purpose: stabilizing and concentrating a specialized array of extracellular biocatalysts at the polymer interface. This structural alignment shifts the focus from macroscopic microbial ecology to the precise, microscopic enzymatic architecture required to sever synthetic covalent bonds.

3. Biochemical Mechanisms of Polymer Assimilation: The Molecular Scissors

The biological degradation of synthetic polymers relies on a highly coordinated, multi-step enzymatic cascade. Because intact microplastic macromolecules are far too large to pass through microbial cell walls, biodegradation must begin externally. Microbes deploy extracellular enzymes—often termed “molecular scissors”—to introduce oxygen-containing functional groups, initiate chain scission, and reduce hydrophobic polymers to low-molecular-weight oligomers and monomers that are accessible for cellular uptake.

This enzymatic attack generally proceeds via two primary biochemical pathways: hydrolytic cleavage of hetero-chain polymers containing polar functional groups (such as PET and PUR), and oxidative cleavage of highly recalcitrant homo-chain polyolefins (such as PE and PS).

3.1. Extracellular Hydrolysis: The Initial Cut

For polymers with hydrolyzable backbones containing ester or amide linkages, such as PET and PUR, microorganisms secrete extracellular hydrolases. These enzymes utilize water molecules to cleave covalent bonds, effectively “unzipping” the polymer chains.

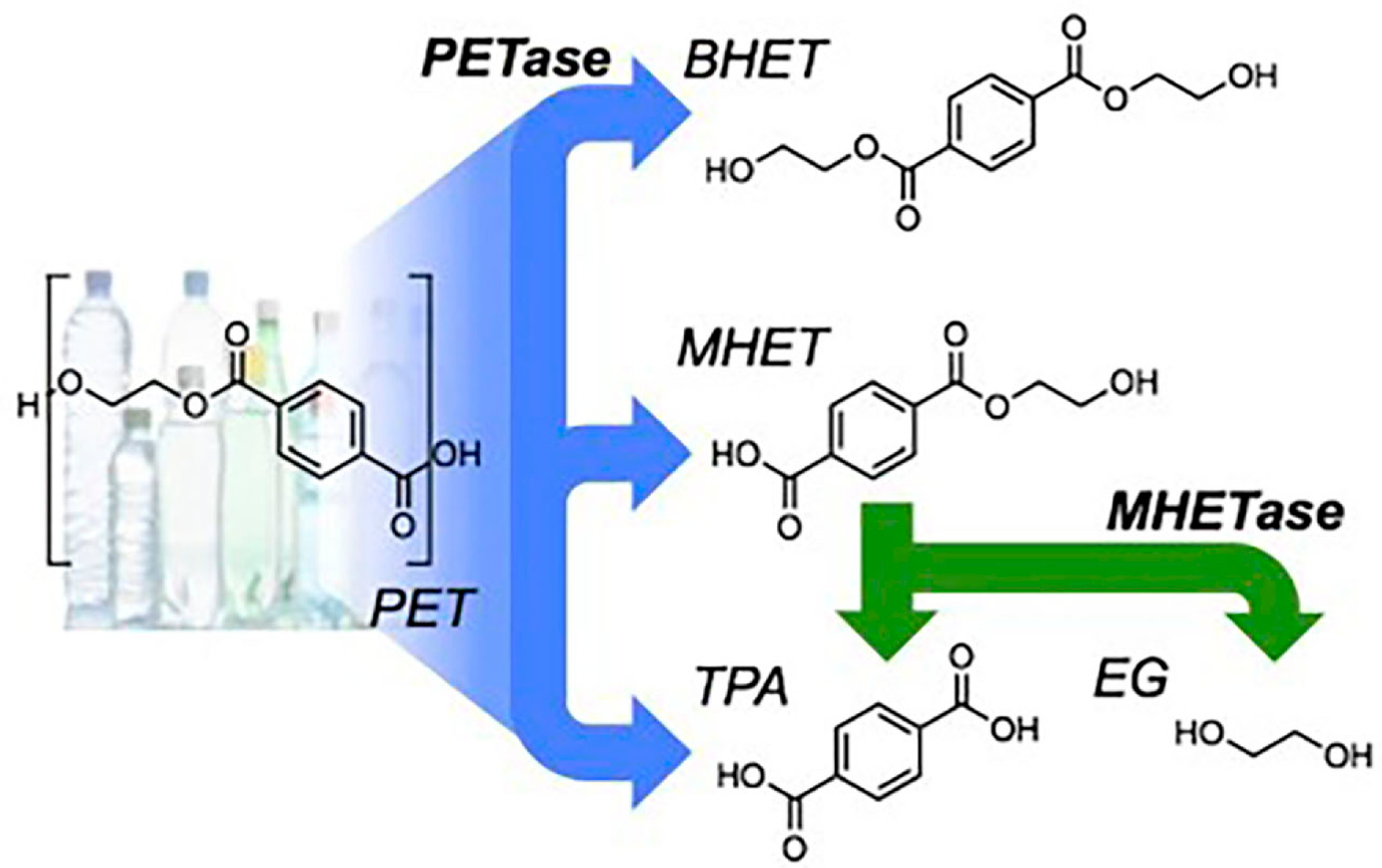

In PET degradation, the process proceeds as a stepwise cascade (Figure 6). The enzyme PET hydrolase (PETase) first cleaves the long-chain polymer into smaller soluble fragments, primarily mono(2-hydroxyethyl) terephthalate (MHET), with minor fractions of bis(2-hydroxyethyl) terephthalate (BHET). Subsequently, a secondary enzyme, MHETase, breaks these intermediate fragments down into their core constituent monomers: terephthalic acid (TPA) and ethylene glycol (EG).

Figure 6. Microbial depolymerization pathway of polyethylene terephthalate (PET) showcasing the enzymatic breakdown intermediates, including bis(2-hydroxyethyl) terephthalate (BHET), mono(2-hydroxyethyl) terephthalate (MHET), and terephthalic acid (TPA), followed by final intracellular assimilation [56].

Beyond specialized PETases, ancestral cutinases and esterases—which originally evolved to hydrolyze plant cutin—have open active-site architectures that are highly effective at cleaving ester bonds in industrial polyurethanes and thin-film microplastics.

3.2. Oxidative Degradation: Breaking the C-C Backbone

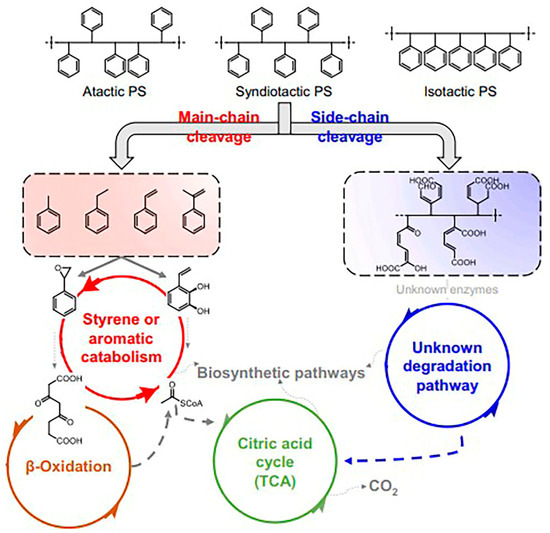

Non-hydrolyzable plastics—specifically PE, PP, and PS—are exceptionally resistant to decay because they lack polar oxygen atoms in their primary backbones. To dismantle these stable carbon chains, microbes deploy oxidoreductases to introduce oxygen, effectively “activating” the polymer for downstream metabolic processing.

• Alkane Hydroxylases (AlkB): These membrane-associated monooxygenases target the terminal or sub-terminal positions of long carbon chains. This initial step converts inert alkanes into primary or secondary alcohols, allowing the chain to be sequentially oxidized into fatty acids that the cell can subsequently metabolize via the intracellular β-oxidation pathway [57].
• Radical-Generating Enzymes: Saprophytic fungi and certain filamentous bacteria (such as Streptomyces) secrete extracellular laccases and peroxidases to drive non-specific oxidation [58].
• Mechanism of Action: Using multi-copper nodes or heme centers, these enzymes generate highly reactive free radicals. These radicals aggressively abstract hydrogen atoms from stable C–H bonds and initiate electron transfers that break stable C-C links, facilitating ring cleavage in polystyrene and general chain scission in polyolefins [59].

Consequently, these multi-enzyme cascades systematically dismantle the structural integrity of the polymer matrix, converting highly hydrophobic macromolecular chains into hydrophilic, oxygenated fragments. To validate these complex biochemical pathways and map the precise kinetics of this enzymatic breakdown, researchers rely on a suite of advanced analytical techniques to track changes in functional groups, thermal stability, and crystalline mass.

The structural and thermodynamic consequences of these enzymatic modifications are clearly illustrated through the specific spectral and thermal profiling of polyolefin degradation by the newly isolated aquatic strain, Hafnia paralvei UUNT_MP29 [60,61,62].

3.3. Multi-Analytical Characterization of Macromolecular Transformation

3.3.1. Fourier-Transform Infrared (FTIR) Spectroscopic Analysis of Substrate Transformation

Critical molecular evidence of microbial polymer degradation is captured by distinct shifts in functional groups monitored by Fourier-Transform Infrared (FTIR) spectroscopy. When hydrophobic, synthetic matrices are subjected to microbial attack, structural modifications typically manifest as changes in the vibrational frequencies and absorption intensities of localized chemical bonds. To eliminate the conceptual ambiguities regarding the test substrates raised during review, the analytical tracks for the aromatic polymer (polystyrene, PS) and the aliphatic polyolefin (low-density polyethylene, LDPE) have been strictly decoupled and evaluated independently based on their distinct chemical architectures.

Chemical Alterations in the Aromatic Polystyrene (PS) Matrix

When pristine PS films—serving as a model for recalcitrant vinyl-aromatic hydrocarbon polymers—are exposed to the specialized aquatic isolate H. paralvei UUNT_MP29, the resulting spectra reveal an unambiguous departure from the pristine polymer baseline. The pristine, untreated PS control film exhibits characteristic, sharp absorption bands corresponding to asymmetric and symmetric sp³ C-H stretching at 2914 cm⁻¹ and 2846 cm⁻¹, respectively, along with distinctive aromatic ring deformation and bending vibrations at 1462 cm⁻¹ and 718 cm⁻¹. After a 16-day biotic incubation with the H. paralvei UUNT_MP29 strain, the absolute intensity of these primary hydrocarbon peaks decreases significantly. This localized flattening indicates systematic biofragmentation of the aliphatic backbone and reduced long-chain structural integrity.

Concurrently, the emergence of broad, novel absorption features in the 1200–1000 cm⁻¹ spectral window provides definitive evidence of biochemical transformation. These newly formed bands are assigned to C-O and C-O-C stretching vibrations, indicating the accumulation of hydrophilic ester and ether linkages in the biotically weathered polymer matrix (Figure 7).

Figure 7. Fourier-transform infrared (FTIR) analysis of polystyrene transformation showing the attenuation of aliphatic bands and the appearance of oxygenated functional groups mediated by Hafnia paralvei UUNT_MP29 [62].

Crucially, the chemical signature of this gut-derived aquatic strain reveals a distinct metabolic divergence from well-documented soil-dwelling microbial models. While classic polymer-degrading specialists, such as Pseudomonas aeruginosa, typically drive degradation via a pronounced keto-carbonyl pathway centered near 1715 cm⁻¹ [63], the H. paralvei UUNT_MP29 fingerprint focuses primarily on intermediate ether and ester functionalization along the vinyl backbone. For the aromatic PS matrix, this specialized functionalization yielded a calculated Carbonyl Index of 0.3235. Because the corresponding abiotic control films incubated under identical thermodynamic and hydrodynamic conditions remain completely unmodified, these spectral variations confirm that the oxidative insertion of oxygen molecules into the polymer framework is strictly biologically mediated.

3.3.2. Chemical Alterations in the Aliphatic Polyolefin (LDPE) Matrix

In parallel to the aromatic tracking, the biotically weathered polyolefin (LDPE) matrix was subjected to independent FTIR profiling to resolve the mixed-substrate reporting identified in the original draft. In contrast to the aromatic ring breathing modes of PS, the pristine LDPE control was characterized by dominant, high-intensity aliphatic methylene absorption states, notably the sharp asymmetric and symmetric stretching bands at 2914 cm⁻¹ and 2846 cm⁻¹, alongside the rock vibrations at 718 cm⁻¹.

Following the 16-day biotic trial with H. paralvei UUNT_MP29, the polyolefin framework displayed an intense, highly localized oxidative transformation pathway. The functional signature of microbial polyolefin breakdown was defined by a pronounced, sharp emergence within the carbonyl stretching window (1710–1740 cm⁻¹), confirming the formation of terminal and internal ketone-, aldehyde-, and carboxylic acid group intermediates along the cleaved linear chains. The calculated Carbonyl Index for the polyolefin matrix (CI_LDPE) was 0.4594, indicating a substantial level of oxygen insertion relative to the more sterically hindered aromatic polymer. This localized, enzyme-catalyzed functionalization significantly reduces the material’s interfacial hydrophobicity, effectively priming the remaining macro-structural chains for deep enzymatic cleavage.

Critical molecular evidence of microbial polymer degradation is captured by distinct shifts in functional groups monitored by Fourier-Transform Infrared (FTIR) spectroscopy. When hydrophobic, synthetic matrices are subjected to microbial attack, structural modifications typically manifest as changes in the vibrational frequencies and absorption intensities of localized chemical bonds. For instance, when pristine PS films—serving as a model for recalcitrant vinyl-aromatic hydrocarbon polymers—are exposed to the specialized aquatic isolate H. paralvei UUNT_MP29, the resulting spectra reveal an unambiguous departure from the pristine polymer baseline.

The pristine, untreated PS control film exhibits characteristic, sharp absorption bands corresponding to asymmetric and symmetric sp³ C-H stretching at 2914 cm⁻¹ and 2846 cm⁻¹, respectively, along with distinctive aromatic ring deformation and bending vibrations at 1462 cm⁻¹ and 718 cm⁻¹. After a 16-day biotic incubation with the H. paralvei UUNT_MP29 strain, the absolute intensity of these primary hydrocarbon peaks decreases significantly. This localized flattening indicates systematic biofragmentation of the aliphatic backbone and reduced long-chain structural integrity.

Crucially, the chemical signature of this gut-derived aquatic strain reveals a distinct metabolic divergence from well-documented soil-dwelling microbial models. While classic polymer-degrading specialists, such as Pseudomonas aeruginosa, typically drive degradation via a pronounced keto-carbonyl pathway centered near [63], the H. paralvei UUNT_MP29 fingerprint focuses primarily on intermediate ether and ester functionalization, yielding a calculated Carbonyl Index (CI) of 0.4594.

Because the corresponding abiotic control films incubated under identical thermodynamic and hydrodynamic conditions remain completely unmodified, these spectral variations confirm that the oxidative insertion of oxygen molecules into the polymer framework is strictly biologically mediated. This localized, enzyme-catalyzed functionalization significantly reduces the material’s interfacial hydrophobicity, effectively priming the remaining macro-structural chains for deep enzymatic cleavage.

3.3.3. Correlation Between Macrostructural Thermal Collapse and Molecular Bio-Oxidation

The thermodynamic shifts captured in the multi-panel derivative thermogravimetric (DTG) profiles (Figure 8) provide clear macroscopic evidence of polymer destabilization, reflecting a fundamental restructuring of each material’s distinct crystalline and amorphous domains. However, to fully decode the substrate-specific chemical modifications driving this thermal collapse, these mass-loss profiles must be cross-correlated with molecular-level structural changes. While thermogravimetry tracks bulk weight loss, the evolution of localized oxygen-containing functional groups reveals the precise enzymatic mechanisms at play across the different polymer architectures.

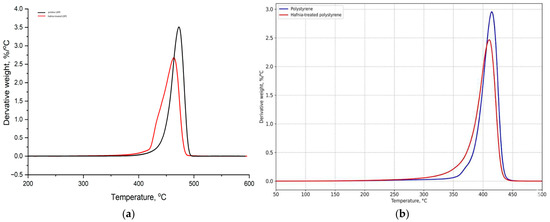

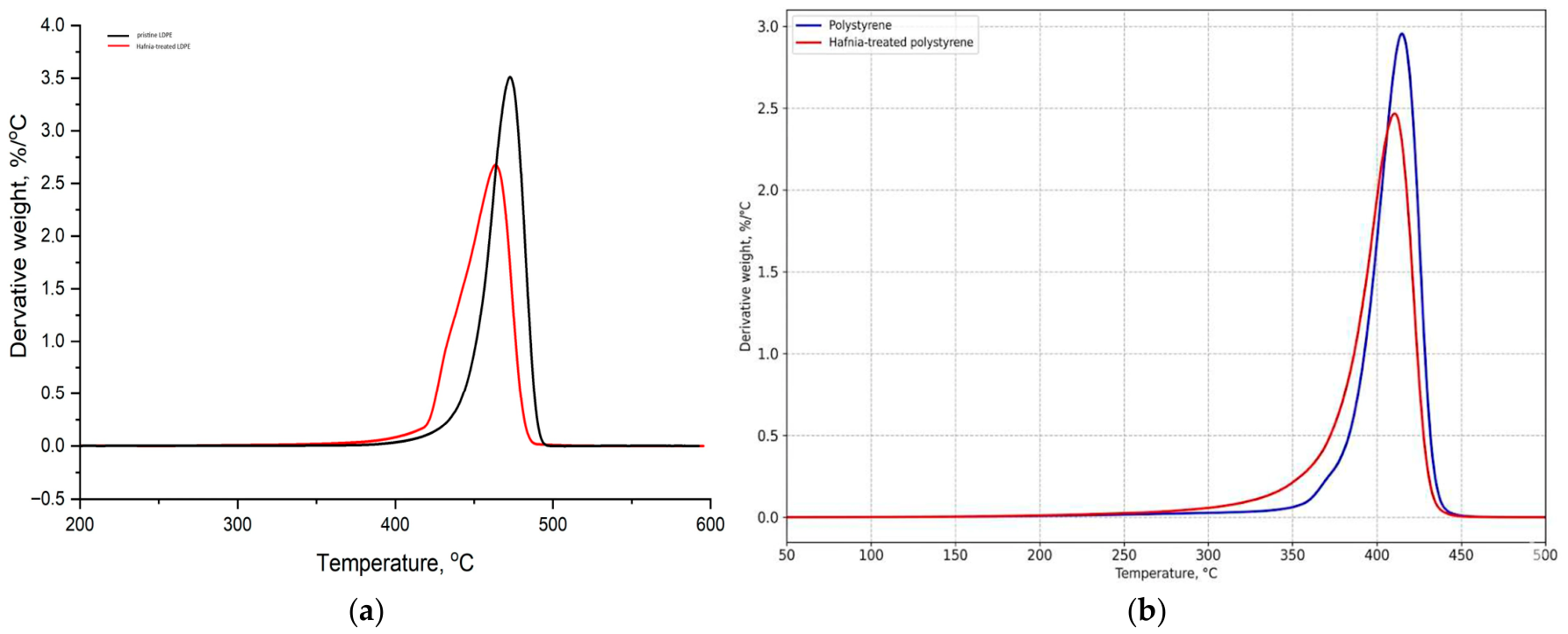

Figure 8. Comparative derivative thermogravimetric (DTG) profiles illustrating the substrate-specific macrostructural destabilization of polymer backbones following a 16-day biotic exposure with H. paralvei UUNT_MP29: (a) Low-Density Polyethylene (LDPE) Matrix: DTG curves of pristine polyolefin film (black line) and biotically treated film (red line). The pronounced downward shift in the maximum decomposition temperature (ΔT_max = 10.95 °C) indicates a substantial reduction in thermal stability, confirming macrostructural destabilization of the polyolefin chain. (b) Polystyrene (PS) Matrix: DTG curves of pristine vinyl-aromatic film (blue line) and biotically treated film (red line). The corresponding downward shift in the maximum decomposition temperature (ΔT_max = 10.80 °C) demonstrates localized polymer matrix degradation and thermal destabilization of the aromatic-pendant framework.

Specifically, the high-intensity carbonyl insertion observed in the linear polyolefin matrix (CI_LDPE = 0.4594) directly underpins the macroscopic thermal weakening shown in Figure 8a, where the cleavage of long-chain methylene backbones results in a ∆T_max reduction of 10.95 °C. Conversely, for the vinyl-aromatic matrix detailed in Figure 8b, the lower baseline oxidation rate (CI_PS = 0.3235) reflects the added thermodynamic stability and steric hindrance imposed by the pendant phenyl rings. Despite this structural barrier, the significant ∆T_max reduction of 10.80 °C confirms that H. paralvei UUNT_MP29 successfully drives localized matrix degradation and thermal destabilization even within vitrified polymer frameworks.

3.3.4. Morphological Profiling of Interfacial Degradation via High-Resolution Microscopy

To map the spatial distribution of this microbial erosion and characterize the structural changes across the polymer surface, advanced high-resolution imaging techniques—specifically Scanning Electron Microscopy (SEM) and Atomic Force Microscopy (AFM)—are deployed. While spectroscopic data confirms what chemical changes have occurred, morphological analysis reveals where and how the biological consortia have physically remodeled the substrate.

When biotically treated polyolefin films are cleared of their biomass and compared to the smooth, homogenous surfaces of abiotic controls, the physical footprint of H. paralvei UUNT_MP29 becomes strikingly apparent (Figure 9). Micrographs reveal extensive surface blistering, deep longitudinal fracturing, and localized pitting that mirrors the exact spatial configuration of the prior biofilm topology. This extensive nanoscale roughness confirms that enzymatic degradation is not a uniform, surface-wide dissolution, but rather a targeted, interfacial excavation driven by the structural arrangement of the sessile microbial community.

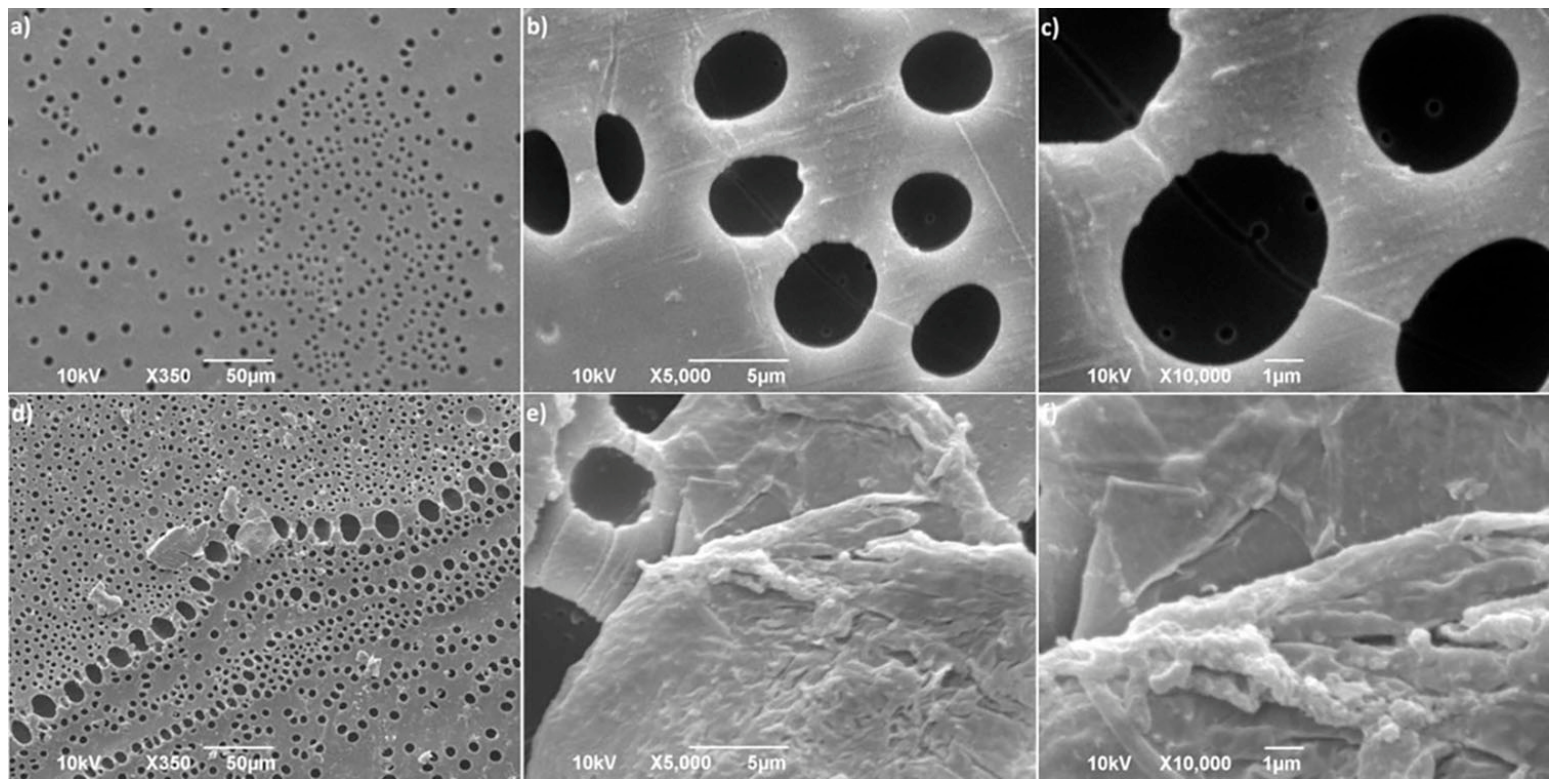

Figure 9. (a–c) Pristine LDPE control films displaying a smooth surface and (d–f) H. paralvei UUNT_MP29 treated LDPE over 16 days at progressive magnifications (200–10,000×), highlighting deep erosion pockets, microcracks, and structural pitting.

The physical consequences of these spectral and thermal changes are visually manifest via scanning electron microscopy (SEM), which tracks the topographical evolution of the plastisphere interface. Pristine, non-inoculated control LDPE films consistently exhibit a smooth, featureless surface topology devoid of structural defects, microcracks, or structural irregularities, confirming that no abiotic weathering occurred during the experimental timelines [60].

This internal etching behavior triggers a powerful positive feedback mechanism: the creation of a porous network dramatically expands the available surface area within the plastic, which in turn facilitates deeper penetration by extracellular enzymes and enhances stable biofilm anchoring. This aligns with recent findings on autochthonous aquatic isolates from Cyprinus carpio, which exhibit optimized surface colonization and structural degradation traits tailored for a synthetic polymer backbone.

3.4. Comparative Enzymatic Efficiency: Overcoming the Polymer Barrier

The transition from surface biofilm attachment to carbon mineralization is governed by the specific catalytic efficiency of the extracellular secretome. As summarized in Table 4, the effectiveness of these biological “scissors” is not universal; it is strictly dictated by the chemical architecture of the polymer backbone and the thermodynamic accessibility of its constituent bonds.

Table 4. Comparison of Extracellular Enzymatic Action and Catalytic Performance [64,65,66,67,68].

Enzyme Class	Primary Mechanism	Target Plastic	Catalytic Efficiency & Output
Hydrolases (Cutinases, Esterases)	Nucleophilic bond cleavage via water insertion.	PET, PUR, PLA.	High: Highly targeted depolymerization yielding uniform, bioavailable monomers.
Oxygenases (Mono- & Dioxygenases)	Insertion of molecular O2 into hydrophobic chains.	PE, PP.	Moderate-Low: Slow kinetics due to high activation-energy barriers of saturated hydrocarbons.
Laccases (Multi-Copper Oxidases)	Redox-driven free radical generation and chain scission.	PS, PE.	Moderate: Broad-spectrum but non-specific, yielding highly heterogeneous polymer fragments.

3.4.1. Hydrolases: The Precision Cutters

Hydrolases—including esterases, cutinases, and lipases—are the most efficient enzymes for degrading hetero-chain polymers such as PET, PUR, and PLA [27,69,70]. These enzymes target polar functional groups (esters or urethanes) within the polymer chain. Because these bonds are highly susceptible to nucleophilic attack by water, hydrolases achieve high catalytic rates by docking at specific, accessible cleavage sites. Their high efficiency reflects an ability to perform targeted depolymerization, typically yielding uniform monomers that are immediately bioavailable for microbial uptake.

3.4.2. Oxygenases: The Oxidative Primers

In contrast, polyolefins such as PE and PP lack accessible functional groups and consist of highly stable, nonpolar carbon–carbon (C-C) bonds. To address these inert backbones, microorganisms deploy oxygenases (mono- and dioxygenases). These enzymes must first insert molecular oxygen into the hydrophobic chain to create reactive polar “handles”, such as alcohols or ketones [71,72]. This process is highly energy-intensive and characterized by slow kinetics, as the enzymes must overcome significant activation energy barriers to destabilize the saturated hydrocarbon structure [73].

3.4.3. Laccases: The Radical Multi-Taskers

Laccases offer a versatile, broad-spectrum strategy. Rather than targeting specific bonds through direct structural docking, laccases use copper-mediated redox reactions to generate highly reactive free radicals [74]. These radicals initiate non-specific, random scission of the polymer backbone. While this mechanism allows laccases to attack highly resistant polymers such as PS—which contains bulky, stabilizing aromatic rings—and PE, their efficiency is moderate. The radical-mediated process is less specific than hydrolysis and often yields a highly heterogeneous mix of fragments rather than uniform, readily metabolizable monomers [75,76].

3.5. Intracellular Mineralization: The Metabolic End-Point

The final stage of biodegradation is achieved once extracellular enzymatic cleavage has successfully fragmented complex microplastic chains into short-chain oligomers or monomers—typically falling below the critical 600 Dalton molecular weight threshold. At this size, these fragments become highly bioavailable, allowing them to be shuttled across the microbial cell membrane via specialized transport proteins for complete intracellular mineralization. This metabolic shift marks the definitive transition from superficial structural fragmentation to active carbon utilization, a fundamental characteristic driving the selection of native candidate strains isolated from freshwater fauna for targeted microplastic bioremediation.

The intracellular breakdown generally follows two primary metabolic trajectories depending on the chemical structure of the starting substrate:

• β-Oxidation Pathway: For hydrocarbon-based plastics such as PE and PP, the resulting long-chain fatty acids enter the β-oxidation cycle. Within this repeating metabolic loop, the carbon chains are sequentially cleaved at the β-carbon, releasing acetyl-CoA units [77].
• The TCA Cycle (The Metabolic Furnace): These generated acetyl-CoA units—along with key aromatic intermediates like terephthalic acid (TPA) derived from PET degradation—directly enter the Tricarboxylic Acid (TCA) cycle. Within this central metabolic furnace, the plastic-derived fragments undergo final oxidation, producing CO₂, H₂O, and metabolic energy in the form of ATP [78,79].

This transition marks the definitive closure of the degradation loop, representing the total conversion of a synthetic environmental pollutant into fundamental biological building blocks and metabolic energy.

3.6. Biodegradation Kinetics: Quantifying the Rate of Decay

Understanding the temporal dynamics of polymer degradation is critical for predicting the environmental persistence of microplastics and for optimizing scalable industrial bioreactors. The kinetics of microbial polymer breakdown typically follow highly non-linear, multi-phase patterns governed by the interplay between the consortium’s biological activity and the shifting physical state of the substrate’s bulk matrix.

3.6.1. The Multi-Phase Kinetic Profile

Macro-scale gravimetric mass loss rarely proceeds at a constant linear velocity. Instead, the microplastic breakdown trajectory generally follows a distinct, three-stage kinetic progression:

• The Lag Phase (Metabolic Acclimatization): During the initial 24–72 h of incubation, the rate of measurable mass loss remains negligible. This period corresponds to the initial cell attachment phase. Because the bacterial inoculum is not pre-exposed to synthetic materials before the assay, this phase represents a critical metabolic induction period during which sessile cells anchor to the hydrophobic interface, sense the polymeric substrate, and initiate transcriptional up-regulation of extracellular oxygenases and hydrolases.
• The Exponential Phase (Active Matrix Erosion): Once a mature, structurally stable biofilm is established, the degradation rate accelerates dramatically. As the colony-forming unit (CFU) surface density stabilizes, the localized concentration of secreted enzymes transcends a critical functional threshold. During this window, the steep decline in macromolecular weight is driven by the fact that enzymatic chain scission significantly outpaces any polymer recrystallization kinetics [80,81].
• The Plateau Phase (Saturation and Recalcitrance): As the high-velocity phase concludes, the degradation curve reaches a kinetic plateau. This deceleration occurs because the highly accessible, disordered amorphous regions of the polymer matrix have been preferentially consumed. The remaining highly ordered crystalline “shards” exhibit a significantly higher activation energy barrier, thereby resisting enzymatic attack and slowing the mass-loss rate [82].

3.6.2. Mathematical Modeling of Mass Loss Dynamics

To evaluate the degradative kinetics of low-density polyethylene (LDPE) by the isolated strain Hafnia paralvei UUNT_MP29, the initial mass-loss rate was modeled using a first-order kinetic framework. As originally established and validated in our previous work [60], the first-order kinetic rate constant (k = 0.01723 day⁻¹) and its corresponding theoretical polymer half-life (t_1/2 = 40.23 day⁻¹) were derived strictly from the active, exponential degradation window captured during the first 8 days of exposure (Figure 10).

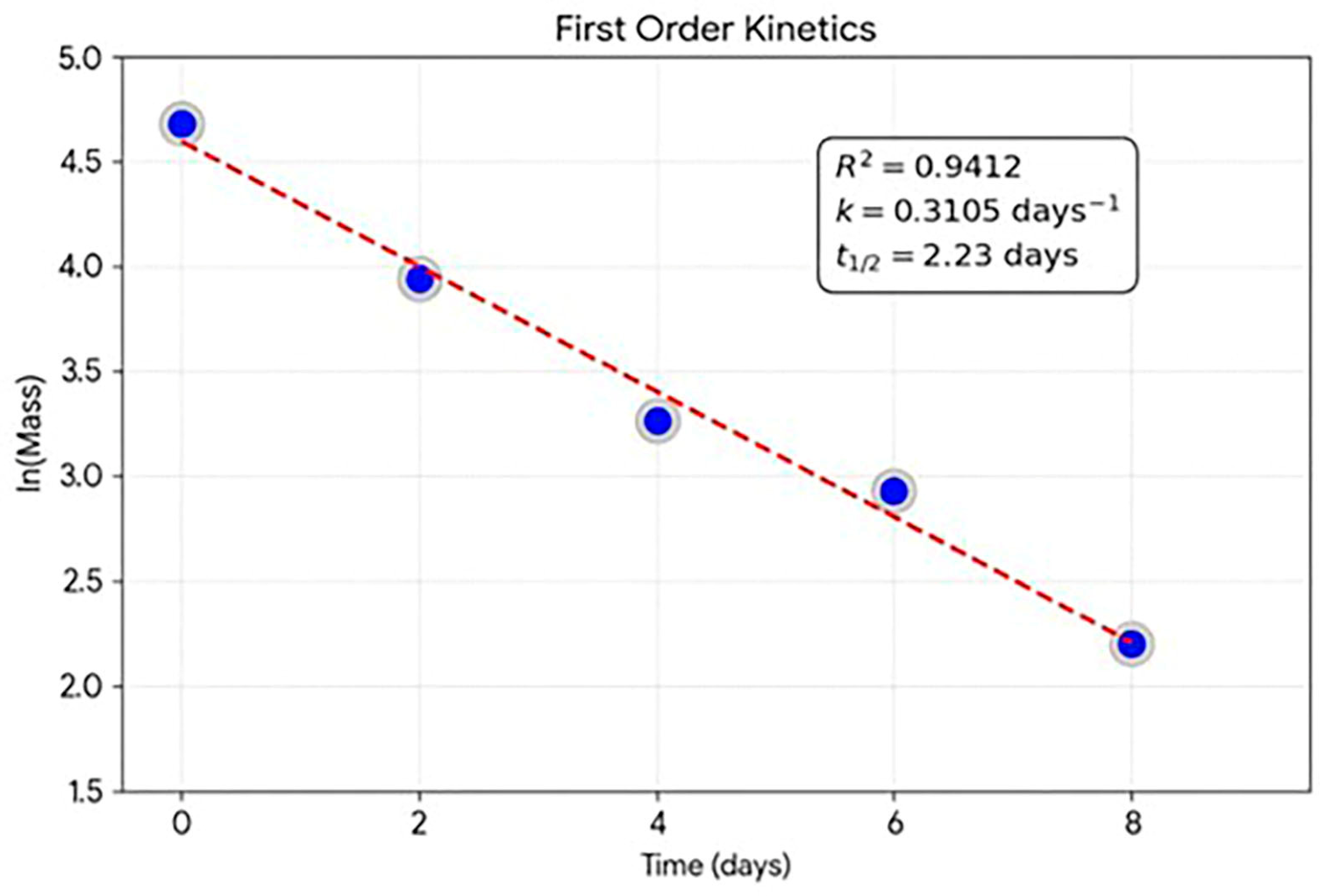

Figure 10. Kinetic plot of polyethylene degradation fitted to a first-order model (ln(M_t/M₀) = −kt). Experimental data points (blue dots) represent the natural logarithm of the remaining mass versus time (days), while the red dashed line denotes the linear regression fit. The calculated reaction rate constant (k = 0.3105 days⁻¹) and high coefficient of determination (R² = 0.9412) demonstrate a strong correlation typical of first-order polymer degradation during the first 8 days of treatment.

In the present study, this mathematical model serves as a baseline to contextualize the extended 16-day trial timeline. When tracking the gravimetric mass reduction past this initial 8-day kinetic window, the empirical data reveal a transition from exponential mass depletion to a deceleration phase. Specifically, the system crosses a major gravimetric milestone at Day 10, yielding a mass reduction of 21.05% ± 1.10%, before entering a plateau phase that culminates in a final total mass loss of 24.10% ± 1.25% at Day 16. Retaining the 8-day fitted curve from Reference [60] preserves the published kinetic baseline of the primary metabolic onset, while our extended 16-day empirical observations reveal the long-term saturation dynamics of the bioprocess.

In contemporary pilot-scale bioreactor configurations, integrating advanced chemical pretreatments—such as Advanced Oxidation Processes (AOPs)—before microbial inoculation has been shown to increase the primary rate constant (k) by a factor of 3 to 5 compared with purely biological setups. This substantial “kinetic boost” is directly attributable to the immediate abiotic reduction in the polymer’s initial molecular weight and the introduction of hydrophilic handles. By lowering the initial activation energy barrier, the chemical primer enables the subsequent microbial community to bypass the prolonged lag phase and transition almost immediately into active exponential bio-assimilation.

3.7. Establishing a Standardized Biodegradability Index (BI)

A primary methodological bottleneck in contemporary microplastic bioremediation research is the lack of a unified, cross-disciplinary metric to quantify true degradation efficacy. While contemporary literature frequently relies on isolated metrics—such as gravimetric weight loss, changes in absolute cell density (CFU), or localized surface morphological alterations—these parameters are often insufficient when used individually [83]. They cannot definitively confirm the complete removal of a synthetic pollutant or its potential conversion into persistent, sub-micron crystalline shards that escape standard detection.

To address this challenge and provide definitive validation of complete mineralization—defined here as the stoichiometric conversion of polymer-derived carbon into microbial biomass and inorganic CO₂—we propose implementing a standardized Biodegradability Index (BI). This framework utilizes an integrated, multi-parametric scoring system (ranging from 0 to 100) derived from four critical analytical pillars:

Carbon Mineralization Efficiency (Q_M): The quantitative measurement of polymer-derived carbon converted into evolved CO₂ or gaseous metabolites via closed-circuit respirometric analysis. This parameter ensures that the polymer carbon actively enters the microbial tricarboxylic acid (TCA) cycle rather than being merely sequestered or fragmented.

Macromolecular Weight Reduction (M_W): The assessment of the reduction in average polymer chain length using gel permeation chromatography (GPC) or size-exclusion chromatography. This indicates intrinsic cleavage of the robust carbon–carbon backbones.

Fragmentation and Surface Dynamics (F_SD): The topological characterization of physical transformations at the polymer interface. This integrates digital surface roughness parameters (R_a), fractal dimensions, and progressive pore formation, as observed by high-resolution automated SEM, to track the physical disintegration of the bulk matrix.

Ecotoxicity Clearance (EC): Longitudinal bioassays that evaluate the environmental safety of the resulting degradation end-products and confirm the complete absence of persistent, toxic metabolic intermediates or leached synthetic additives (e.g., plasticizers, stabilizers) using sensitive aquatic bioindicators.

The resulting index mathematically compiles these vectors to yield a definitive score:

BI = a(Q_M) + b(M_W) + c(F_SD) + d(E_C)

(1)

where a, b, c, d represent standardized weighting coefficients optimized for specific polymer formulations (e.g., polyolefins vs. hetero-chain polymers).

The specific asymmetric linear weighting assigned to the coefficients (0.40, 0.30, 0.20, and 0.10) reflects the hierarchical thermodynamic and ecological significance of each analytical frontier, preventing superficial physical changes from being misconstrued as authentic biological remediation:

Carbon Mineralization Efficiency (Q_M, weighted at 40%): The quantitative measure of polymer-derived carbon converted to evolved CO₂ or gaseous metabolites, determined by closed-circuit respirometric analysis. This parameter is heavily weighted at 40% because mineralization provides the definitive proof of biological recycling. It confirms that polymer carbon actively enters the microbial tricarboxylic acid (TCA) cycle for energy generation and cellular biomass synthesis rather than being merely sequestered, accumulated, or fragmented.

Macromolecular Weight Reduction (M_W, weighted at 30%): The assessment of the reduction in average polymer chain length using gel permeation chromatography (GPC) or size-exclusion chromatography. It reflects the direct catalytic efficiency of secreted extracellular enzymes (e.g., laccases, cutinases, or alkane hydroxylases) in cleaving robust, recalcitrant carbon–carbon backbones. It carries a high weight of 30% because a significant shift in peak molecular weight and polydispersity indices is the mandatory thermodynamic bottleneck that must be bypassed before oligomers can become bioavailable for intracellular uptake.

Fragmentation and Surface Dynamics (F_SD, weighted at 20%): The topological characterization of physical transformations at the polymer interface. This integrates digital surface roughness parameters (R_a), fractal dimensions, chemical oxidation footprints (such as the FTIR-derived Carbonyl Index), and progressive pore formation observed via high-resolution automated SEM. While tracking the physical disintegration of the bulk matrix is an essential indicator of early-stage microbial attachment and localized bio-erosion, this pillar is capped at 20% because abiotic factors (e.g., mechanical shearing or UV weathering) can mimic these physical changes without true metabolic assimilation.

Ecotoxicity Clearance (E_C, weighted at 10%): Longitudinal bioassays evaluating the environmental safety of the resulting degradation end-products and the complete absence of persistent, toxic metabolic intermediates or leached synthetic additives (e.g., plasticizers, stabilizers) using sensitive aquatic bio-indicators. Although environmental neutrality is a non-negotiable regulatory and safety prerequisite for any scalable bioprocess, it is assigned a 10% weight as it serves as a secondary ecotoxicological validation of the breakdown pathway rather than a direct kinetic measurement of the structural erosion of the polymer matrix itself.

By establishing this composite scoring framework, the Biodegradability Index (BI) successfully penalizes experimental setups that merely fragment macro-plastics into hazardous, sub-micron crystalline shards while identifying and elevating technologies that achieve genuine, circular ecological remediation. Consequently, the BI provides a robust, scalable metric for regulatory acceptance, industrial standardization, and validated environmental safety, effectively bridging the gap between bench-scale laboratory breakthroughs and authentic ecological clearance. A schematic representation of the composite Biodegradability Index (BI) scoring framework is depicted in Figure 11.

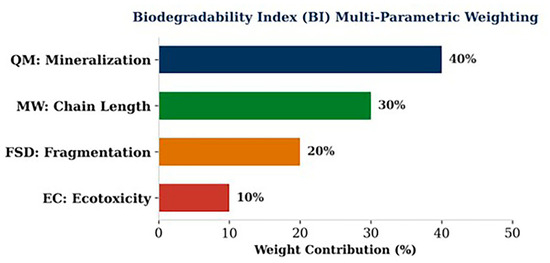

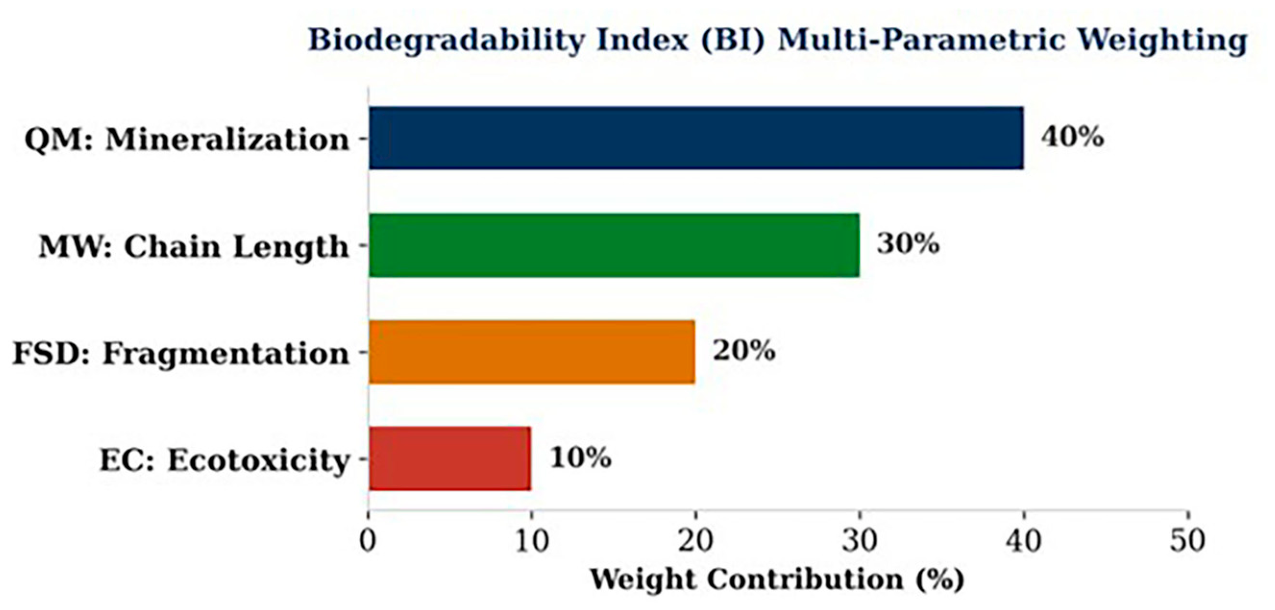

Figure 11. Multi-parametric architecture and mathematical weighting of the proposed Biodegradability Index (BI): Carbon Mineralization Efficiency (Q_M, 40%), Macromolecular Chain Length/Weight Reduction (M_W, 30%), Fragmentation Surface Dynamics (F_SD, 20%), and Ecotoxicity Clearance (E_C, 10%).

Finally, an authentic environmental remedy must ensure that the accelerated bio-detoxification process does not inadvertently release toxic synthetic additives—such as phthalates, alkylphenols, or bisphenols—into the surrounding aqueous media. To address this risk, the proposed Biodegradability Index (BI) incorporates the Ecotoxicity Clearance (EC) score, evaluated using standardized aquatic bioassays, including Vibrio fischeri bioluminescence inhibition [84] or Daphnia magna immobilization assays [85]. This metric ensures that the “Bio-Gap” is not bridged at the expense of downstream environmental toxicity, guaranteeing that the polymer matrix’s structural breakdown is accompanied by absolute ecological safety.

The practical deployment of this composite framework depends on aligning these four qualitative pillars with precise, quantitative diagnostic instruments. By anchoring each metric to validated standard parameters, the index provides an unambiguous, multi-tiered verification of environmental safety and polymer degradation. A comprehensive breakdown of these operational criteria, their methodological execution, and their respective performance weightings is presented in Table 5 [86,87,88].

Table 5. Proposed Biodegradability Index (BI) Scoring Framework.

Pillar Metric	Method of Measurement	Ecological/Structural Significance	Score Weighting
Mineralization (QM)	Closed-circuit respirometry (CO2/CH4 headspace yield).	Confirms true metabolic end-point and absolute carbon assimilation into the food web.	40%
Chain Length (MW)	Gel Permeation Chromatography (GPC)/Size Exclusion Chromatography.	Validates cleavage of the intrinsic long-chain structural backbone and a reduction in molecular weight.	30%
Fragmentation (FSD)	Automated SEM Image Analysis/High-Resolution Micro-Raman Spectroscopy.	Tracks the physical fragmentation, surface pitting, and porosity of the bulk matrix.	20%
Ecotoxicity (EC)	Vibrio fischeri bioluminescence inhibition/Daphnia magna acute immobilization.	Ensures the absolute environmental safety of downstream metabolic intermediates and leached chemical additives.	10%

3.8. Genetic Engineering: Strengthening the Biological Catalyst

Genetic engineering has pivoted toward developing robust “biological catalysts” capable of withstanding the high-pressure, high-temperature conditions in industrial wastewater treatment units. Central to this structural optimization are the enzymes originally isolated from Ideonella sakaiensis: PETase and MHETase [89].

3.8.1. Overcoming Thermal Fragility

Native plastic-degrading enzymes are frequently thermally unstable, denaturing or losing their active secondary conformation at the elevated temperatures (60–70 °C) required for efficient industrial processing. To address this limitation, artificial intelligence (AI)-driven structural reinforcement and rational protein design are utilized to identify structural weak spots in the enzyme’s architecture. By introducing strategic disulfide bonds, salt bridges, or stabilizing point mutations into the flexible surface loop regions, researchers can effectively “staple” the tertiary protein structure [90,91]. This ensures the catalytic site remains folded, rigid, and fully operational even within the intense thermal environments of industrial bioreactors.

3.8.2. Leveraging the Glass Transition (T_g)

Thermal stability is not only an enzyme requirement but also a prerequisite for substrate accessibility. At temperatures exceeding 65 °C, synthetic polymers such as PET enter their glass transition (T_g). In this state, the polymer transitions from a rigid, highly ordered, semi-crystalline arrangement to a more flexible, amorphous state. This increased chain mobility significantly lowers the activation energy barrier for enzymatic attack, allowing the engineered biocatalyst to penetrate deeper into the material’s core matrix. It must be emphasized that thermal activation of the glass transition primarily applies to high-T_g amorphous or semi-crystalline macromolecules, such as poly(ethylene terephthalate) (PET, T_g ≈ 65–80 °C) and polystyrene (PS, T_g ≈ 100 °C), which require substantial thermal energy to transition from a brittle, vitrified state to a flexible, rubbery matrix. Conversely, this physical property threshold is not universal for all microplastics; aliphatic polyolefins such as low-density polyethylene (LDPE) exhibit a glass transition temperature well below ambient room temperature (approx. −120 °C). Consequently, under standard experimental and ambient conditions, the amorphous domains of LDPE are already in a highly mobile, flexible state. Beyond purely thermodynamic thresholds, the dynamics of these amorphous domains are also heavily dictated by intrinsic material traits; for instance, manufacturing-induced compressive residual stresses can actively drive the nano- and microscale phase separation and migration of low-molecular-weight amorphous polymer chains straight to the material interface, generating distinct amorphous polymer micropollutants (APMPs) when in contact with aqueous phase boundaries [92]. This structural baseline radically alters localized interfacial mechanics and baseline susceptibility to initial microbial degradation compared to the rigid, vitrified frameworks of high-T_g polymers at ambient temperatures.

3.8.3. Optimizing Catalytic Kinetics

To scale up bioremediation processes to 100,000 L industrial volumes, the catalytic rate—the overall velocity of substrate cleavage—must be significantly accelerated. Genetic modifications typically target the enzyme’s active site binding pocket. By widening this pocket or modifying its internal electrostatic charge configuration, the enzyme’s affinity for the synthetic polymer is optimized, enabling it to bind, cleave, and release polymer fragments at a substantially higher turnover rate (k_cat) than wild-type variants.

3.9. Surface Attachment and Bio-Receptivity

The success of biotechnological water treatment depends on more than simply releasing free-floating enzymes into a liquid medium. Next-generation strategies focus on surface attachment and bio-receptivity to ensure that engineered enzymes and cells remain localized directly at the solid–liquid biological interface.

Engineering plastic-degrading enzymes fused with specialized polymer-binding domains (PBDs) enables them to act as biological anchors that selectively latch onto the “Phase Zero” conditioning film [93]. By localizing the enzymes within the stagnant boundary layer immediately surrounding the microplastic particle, the system protects these expensive catalysts from being washed away or diluted by turbulent hydrodynamic currents.

A primary future direction is the development of bio-receptive plastics—materials intentionally engineered with chemical triggers during synthesis to recruit the appropriate biological cohorts [94,95]. By modifying the polymer surface during synthesis to adsorb specific organic acids and signaling ions, the pioneer colonization phase can be tightly controlled.

The surface charge (Zeta potential) can be finely tuned to neutralize native electrostatic repulsion, enabling specific degrading strains, such as I. sakaiensis, to make immediate physical contact. This shift to surface-localized treatment ensures that each microplastic particle effectively becomes a self-contained, high-efficiency degradation factory [46].

This extensive nanoscale roughness confirms that enzymatic degradation is not a uniform, surface-wide dissolution, but rather a targeted, interfacial excavation driven by the spatial arrangement of the sessile microbial community.

However, observing these microscale degradation footprints under idealized laboratory conditions marks only the first phase of environmental remediation. To effectively mitigate the global microplastic crisis, these localized biochemical phenomena must be translated into scalable, continuous-flow technologies. Moving from a stationary Petri dish or flask to an industrial-scale municipal or industrial wastewater treatment facility requires navigating complex fluid dynamics, high volumetric processing loads, and severe kinetic limitations. This operational leap shifts the manuscript’s focus from fundamental microscopic biochemistry to macro-scale environmental bioprocess engineering.

4. Hybrid Engineered Systems: Integrating Advanced Oxidation Processes (AOP) with Membrane Bioreactors (MBR)

To circumvent the severe kinetic limitations inherent to standalone biological polymer degradation, modern environmental engineering must deploy hybrid, multi-stage treatment configurations. A single biological reactor loop is fundamentally insufficient for handling highly crystalline, high-molecular-weight polyolefins at industrial volumes and operational timescales.

Consequently, state-of-the-art water reclamation infrastructure must integrate an aggressive upstream chemical pre-treatment phase with a high-density downstream biological retention loop. The cutting-edge architecture for this approach couples Advanced Oxidation Processes (AOPs) [96] with Membrane Bioreactors (MBRs) [97] into a unified, continuous-flow treatment train.

4.1. Upstream AOP Photolysis: Chemical Pre-Oxidation and Chain Scission

The primary thermodynamic and kinetic bottleneck in microplastic biodegradation is the high crystallinity and extreme interfacial hydrophobicity of the saturated hydrocarbon backbone, which sterically restricts extracellular enzymatic access. The hybrid system resolves this energetic barrier by introducing an initial AOP staging unit that uses combinations of ultraviolet (UV) irradiation, hydrogen peroxide (H₂O₂), or ozone (O₃).

Rather than aiming for complete chemical mineralization—which remains economically prohibitive and energy-intensive—the AOP unit is strictly optimized to propagate radical-driven photo-oxidation and localized chain scission. This stage targets the primary polymer backbones, generating highly reactive hydroxyl (·OH) and superoxide (·O₂⁻) radicals that abstract hydrogen atoms and introduce polar functional groups (carbonyls, carboxyls, and hydroxyls) [98].

This localized oxidation cleaves long, insoluble macromolecules into highly soluble, low-molecular-weight oxygenated fragments and oligomers. This automated process achieves in minutes the structural breakdown that would otherwise require months or years of ambient environmental weathering, effectively priming the influx stream for biological assimilation.

4.2. Downstream Membrane Bioreactors (MBRs): Biomass Retention and Biofilm Optimization

After upstream oxidation, the chemically pre-treated, fragment-rich stream flows directly into the MBR chamber. The MBR configuration offers a distinct operational advantage over conventional activated sludge systems by completely decoupling Hydraulic Retention Time (HRT) and Solids Retention Time (SRT) [99,100]. Using submicron porous membranes (ultrafiltration or microfiltration), the system maintains an exceptionally high Mixed Liquor Suspended Solids (MLSS) concentration and retains specialized, slow-growing biofilm consortia—such as the Hafnia paralvei or Ideonella strains discussed in Section 3—without the risk of biomass washout.

The microplastic fragments are physically retained within the reactor loop by the membrane barrier, forcing prolonged interfacial contact with the dense, specialized plastisphere biofilms established on suspended carrier media. The extracellular secretome concentrated within these high-density, sessile matrices systematically drives the final depolymerization, intracellular assimilation, and ultimate stoichiometric mineralization of the fragments into water (H₂O), carbon dioxide (CO₂), and cellular biomass.

4.3. Artificial Intelligence (AI) and Machine-Learning Managed Loops

To manage the highly variable composition and fluctuating volumetric loads of microplastics entering municipal and industrial treatment facilities, these hybrid configurations require real-time optimization managed by artificial intelligence (AI) and automated feedback loops.

By integrating inline spectroscopic sensors—such as automated micro-Raman or micro-FTIR detection loops—neural networks continuously analyze the influx velocity, particle size distribution, and dominant polymer chemistry entering the AOP unit. The AI system then dynamically adjusts operational parameters, including chemical dosing (H₂O₂/O₃), UV lamp intensity, and volumetric residence times within the AOP phase, tailored to the material’s specific structural resistance.

Concurrently, machine-learning loops monitor dissolved oxygen (DO) levels, metabolic gas evolution (CO₂), and transmembrane pressure (TMP) in the downstream MBR block. This predictive automation safeguards the delicate microbial community against toxic shock or surfactant overload, ensuring optimal, energy-efficient biodegradation rates while preventing membrane fouling. To contextualize how these digital and biological layers interface at scale, Figure 12 outlines the integrated workflow for xenobiotic bioremediation in an industrial wastewater treatment plant, mapping the functional synergy among AI-driven system optimization, in-line multi-omics analytics, and tailored microbial consortia.

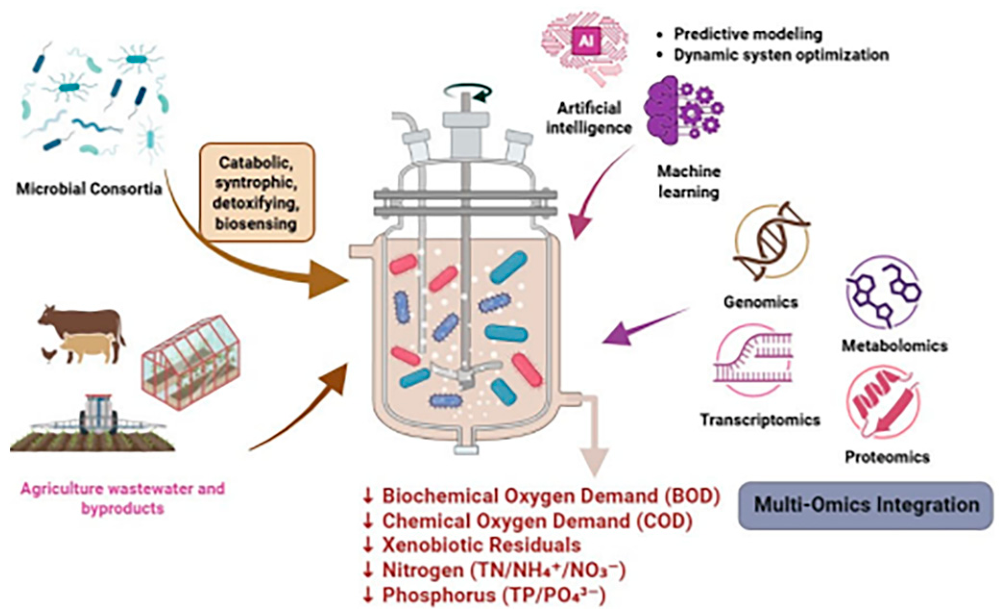

Figure 12. Integrated workflow for xenobiotic bioremediation in an industrial wastewater treatment plant, connecting AI-driven system optimization, inline multi-omics analytics, and tailored microbial consortia for verified polymer mineralization [101].

5. Conclusions and Future Perspectives

The global response to microplastic pollution has officially evolved from passive observation and containment to active, targeted biological intervention. This transition—from traditional, energy-intensive mechanical remediation to sophisticated biotechnological mineralization—marks a critical paradigm shift in synthetic waste management. By harnessing the unique ecological properties and rapid evolutionary dynamics of the Plastisphere, environmental engineering is moving toward a future in which synthetic polymers are no longer viewed as terminal environmental pollutants but as viable carbon feedstocks for a circular bio-economy.

The ultimate objective of next-generation environmental biotechnology remains the complete, uncompromised mineralization of plastics: the systematic, enzymatic transformation of complex, resistant polymer backbones into fundamental biological constituents, including CO₂, H₂O, and cellular metabolic energy. The viability of this approach is no longer merely theoretical; it is increasingly supported by empirical laboratory results. As demonstrated in this study through the isolation and cultivation of the gut-derived aquatic strain Hafnia paralvei UUNT_MP29, a targeted 16-day biotic exposure yielded a Carbonyl Index of 0.4594 and a maximum decomposition temperature drop of ΔT_max = 10.95 °C. These distinct spectroscopic and thermogravimetric shifts provide concrete evidence that microscale enzymatic cascades can actively reduce the structural and thermodynamic resistance of historically recalcitrant polyolefin films.

However, moving these microscale degradation footprints from bench-scale laboratory settings to industrial-scale implementation requires bridging a profound gap in bioprocess engineering. Achieving complete stoichiometric mineralization at the municipal scale depends heavily on adopting the modular, AI-managed hybrid treatment architectures outlined in this work. By systematically coupling upstream chemical pre-treatment via Advanced Oxidation Processes (AOPs) with high-density downstream biological retention loops in Membrane Bioreactors (MBRs), engineered systems can navigate the high volumetric flows and complex fluid dynamics of real-world wastewater treatment facilities while maintaining strict containment.

To accelerate this transition and establish universal standards for global waste streams, future research must prioritize two critical technical frontiers. First, bioprocess monitoring must adopt multi-parametric metric frameworks, such as the proposed Biodegradability Index (BI), to accurately weigh carbon mineralization (Q_M), molecular weight reduction (M_w), fragmentation dynamics (F_SD), and ecotoxicity clearance (EC), ensuring that engineered systems do not produce persistent submicron crystalline shards. Second, designing dual-path microbial consortia or multi-species biofilms is essential for simultaneously degrading the robust polymer backbone and neutralizing toxic additives (e.g., phthalates and bisphenol A) released during successional matrix degradation. The microbial degradation of synthetic microplastics is one of the most rapid and striking examples of anthropogenically driven biological evolution in human history. By combining this innate microbial adaptability with precise, rational enzyme design and advanced chemical pre-treatments, modern environmental biotechnology is building a robust, multi-layered defense against one of the Anthropocene’s most pervasive ecological threats. Bridging this translational gap is far more than an isolated technical milestone; it is a vital, non-negotiable step toward restoring the thermodynamic equilibrium of global ecosystems and safeguarding the long-term health of the biosphere.
